Code format and layout

It is recommended that all react applications are based upon ska-react-webapp-skeleton, which provides all of the basic format and layout, as well as all of the scripts as described here. ska-telescope/templates/ska-react-webapp-skeleton

ESLint and Prettier are included as code analysis and formatting tools. These do not need installing as they’re included in node_modules by running

yarn init.

These tools can be run in the command line or integrated into your IDE.

Tip

Ensure that prettier and lint in that sequence are both run before any commits as these are also run as part of the pipeline

Prettier

This will check the JS Code and reformat to a standard structure.

To run this to see the current display issues in the application:

yarn prettier

Run the following to allow the library to automatically update the layout:

yarn prettier:fix

ESLint

This will check the JS Code and ensure that the code meets required standards. It should be noted that this should be run after prettier as it has been noted that prettier has not always formatted as per the SKAO linting standards

To run this to see the current coding issues in the application:

yarn lint

Run the following to allow the library to automatically update if possible:

yarn lint:fix

code-analysis

To run the analysis tools, execute

yarn code-analysis

This will display any errors in the command line. If there are any errors, YARN will exit with a non-zero code, the -s argument suppresses this and cleans up the output. This command is also used as part of the CI/CD process, so it is recommended to run this so that any issues are identified and can be resolved prior to the build.

code-coverage

It is possible to access the code coverage of an application and see it within a browser, allowing for the identification and correction of the code.

1. yarn test:component:headless - Runs that testing and produces the results

2. yarn test:coverage:report - Convert the output into a file that can be accessed in a browser

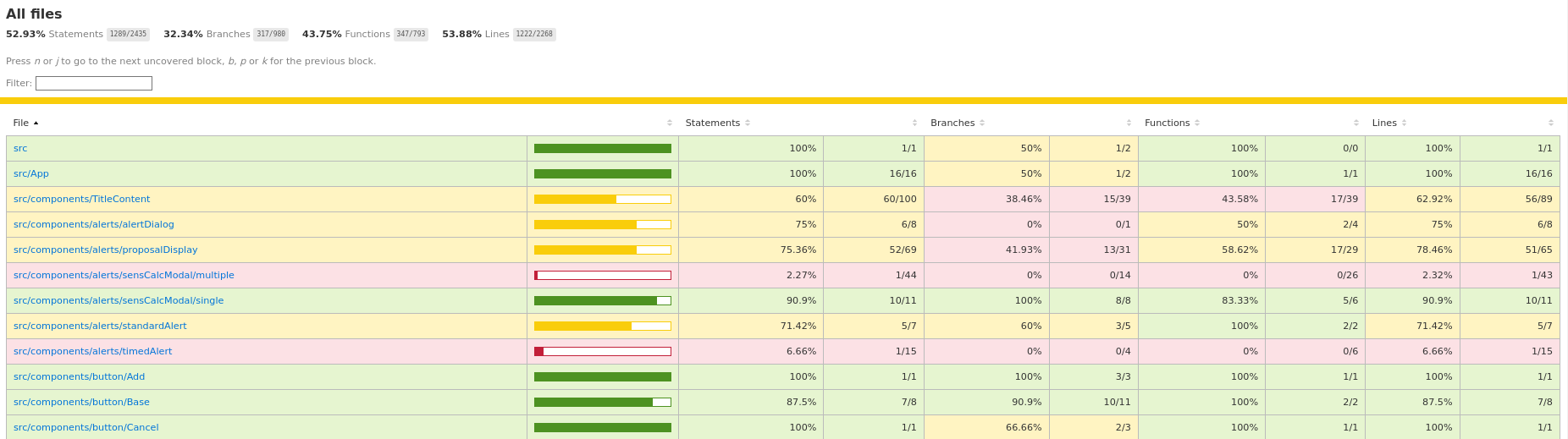

3. file:///{{repository location}}/build/reports/index.html - Drop a URL into a browser which will show coverage breakdown

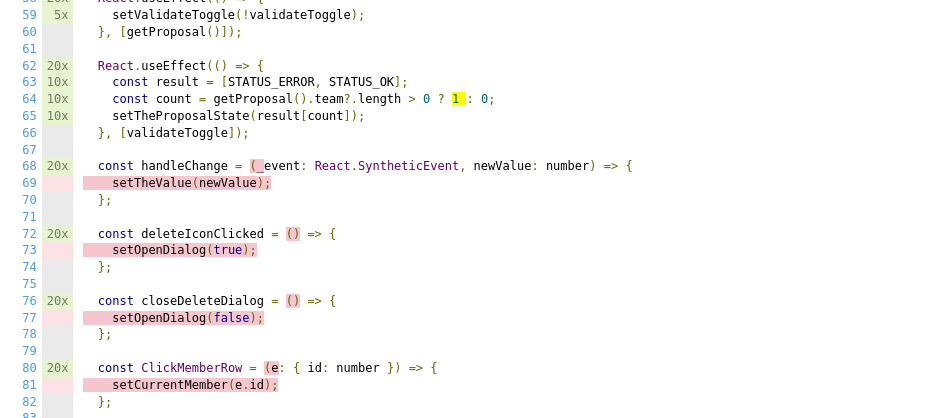

Clicking on one of the links will drill down until a file is reached, at which point the code is displayed and the lines requiring coverage are marked

In this example, the code marked in red has no code coverage at all, whereas the code marked in yellow indicates that the code has partial coverage. Code with no highlighting has full coverage.
