How It Works#

Understand the SKAO Vault structure, KV engines, and access control.

Vault as a secure configuration store#

SKAO treats Vault as a secure store for configurations, not just secrets. This approach provides:

  • Consistent management of both sensitive and non-sensitive configuration

  • Unified access control across all configuration data

  • Audit trails for tracking access and changes

  • Single source of truth for deployments across data centres

Note

While we use “configurations” and “secrets” interchangeably, secrets still require stricter handling and must never be leaked.

Understanding the structure#

SKAO organises Vault data across three levels of ownership:

Level

Description

Data centre

Physical infrastructure hosting multiple environments

Environment

Set of applications/services deployed together (e.g., staging, production)

Application/Service

Individual software component or infrastructure piece

This hierarchy enables tight access control and efficient management at scale.

Path structure#

Every Vault secret follows this pattern:

<prefix>/<service>/<secret>
Basic secret path structure

Where:

  • <prefix> — Context path (e.g., shared/global, <datacentre>/<environment>, dev/<team>)

  • <service> — Application, service, or infrastructure component name

  • <secret> — Specific configuration or secret (credentials, config files, Helm values)

Example in SKAO context:

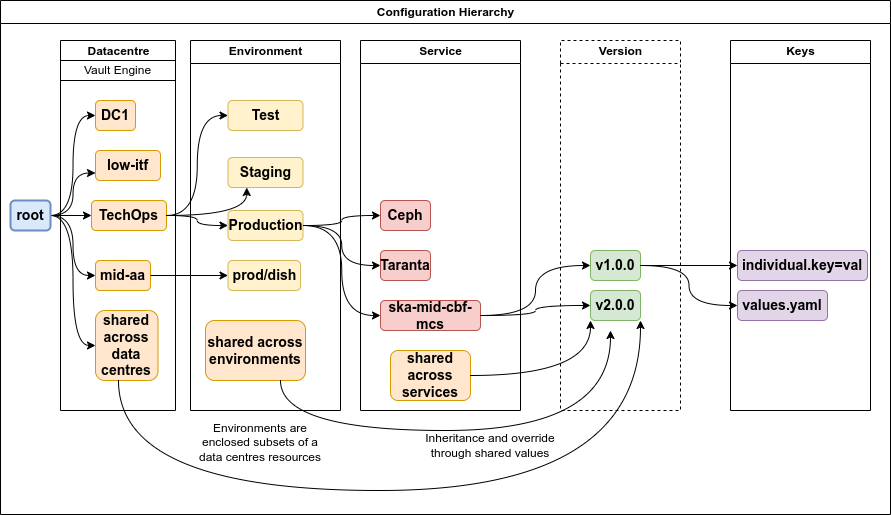

Vault configuration hierarchy

KV engines#

Vault organises secrets into KV (key-value) engines. SKAO uses three categories:

Engine

Purpose

Dev

Development deployments and CI/CD

Shared

Cross-datacentre configurations (production-grade)

Datacentre-specific

Per-datacentre configurations with environment segregation

Separating engines enables:

  • Simplified organisation and management

  • Easier access control policies

  • Reduced duplication through shared sections

Dev KV engine#

The Dev engine serves as a “meta-engine” for development teams, organising by team rather than data centre.

Per-team section:

  • Path: dev/<team>/*/<service>/

  • Contents: Team-specific secrets for development, integration, and staging

  • Users: SRE, AIV, and Development teams

Dev-shared section:

  • Path: dev/shared/

  • Contents: Secrets shared across teams for development environments

  • Users: SRE, AIV, and Development teams

Example structure:

dev/
└── some-team/
    ├── some-service/
    │   └── values.yml
    ├── another-service/
    │   └── database_credentials
    └── infra-component/
        └── config.yml

Note

Your team’s slug must match your GitLab group at ska-telescope/ska-dev. Contact the System Team if you need a group created.

Shared KV engine#

The Shared engine stores configurations used across multiple data centres or environments.

Global section:

  • Path: shared/global/

  • Contents: Secrets common to all data centres and environments

  • Examples: External API keys, infrastructure configurations, common firewall rules

  • Users: SRE and AIV teams

Environment-type sections:

  • Path: shared/<environment>/ or shared/<environment-type>/

  • Contents: Secrets shared among environments of the same type

  • Users: SRE and AIV teams

Example structure:

shared/
  ├── global/                 # All data centres
  ├── production/             # All production environments
  └── staging/                # All staging environments

Note

The environment-type construct (e.g., shared/dish-lmc) enables sharing among differently-named but similar environments like dish-lmc-001, dish-lmc-002, etc.

Warning

Changes to shared sections affect all environments using them. We enforce strict, fine-grained access control.

Datacentre-specific KV engines#

Each data centre has its own KV engine with environment-based organisation.

Per-environment section:

  • Path: <datacentre>/<environment>/

  • Contents: Environment-specific configurations

  • Examples: Database configs, network settings, infrastructure component configs

  • Users: SRE and AIV teams

Datacentre-shared section:

  • Path: <datacentre>/shared/

  • Contents: Secrets shared across environments within the data centre

  • Users: SRE and AIV teams

Some datacentre engines (note that this list might not be updated, you should see the datacentres you have access on login):

  • stfc-techops/

  • stfc-dp/

  • aws-eu-west-2/

  • mid-itf/

  • low-itf/

  • mid-aa/

  • low-aa/

  • psi-mid/

  • psi-low/

Best practices#

Use the appropriate engine:

  • Development and CI/CD → dev/<team>/

  • Shared across environments → shared/

  • Production deployments → <datacentre>/<environment>/

Follow the path pattern:

  • Always use <prefix>/<service>/<secret>

  • Create subdirectories — root paths don’t allow direct secrets

Minimise shared section changes:

  • Changes propagate to all consuming environments

  • Test thoroughly before modifying shared configurations

Replace GitLab CI variables:

  • Store secrets in Vault instead of GitLab CI variables

  • Use Vault How-to Guides for GitLab integration patterns

Deprecation notices#

Deprecated paths:

  • kv/users/groups/ska-dev/<team>/ → Use dev/<team>/ instead

  • Removal in Sprint #2 of PI 25

Deprecated integrations:

  • Vault Sidecar Injector → Use Vault Secrets Operator

  • Vault CSI Driver → Use Vault Secrets Operator

  • Support ends Sprint #2 of PI 25

  • ska-tango-util v0.4.13+ migrates automatically
