SKA PST DSP Architecture

The Digital Signal Processing (DSP) component of the Pulsar Timing (PST) product is responsible for performing the digital signal processing of the channelised voltages in the tied-array beam data generated by the Correlator Beam Former (CBF) producing reduced data products that will be transmitted to the Science Data Processor (SDP) for subsequent secondary analysis.

The PST DSP component is configured, controlled, and monitored by via a gRPC interface with PST LMC.

DSP will consist of signal processing functionality that will be incrementally released throughout the array released schedule and will be delivered in the following order:

  1. AA0.5 Disk Voltage Recorder

  2. AA1 Dynamic Spectrum Mode (flow-through)

  3. AA1 Dynamic Spectrum Mode (limited channelisation)

  4. AA2 Pulsar Timing Mode (limited channelisation)

  5. AA3 Dynamic Spectrum and Pulsar Timing Modes (complete)

AA0.5 Voltage Recorder

The AA0.5 release of DSP, also referred to as DSP.DISK, will simply read tied-array voltage timeseries from the Shared Memory Ring Buffer (SMRB) and write them to a set of files for persistent storage. The meta-data that describe the polarisation vectors are read from the header block of the data and weights ring buffers. The Data and Weights streams are read from separate ring buffers and written to a sequence of separate files.

Decomposition

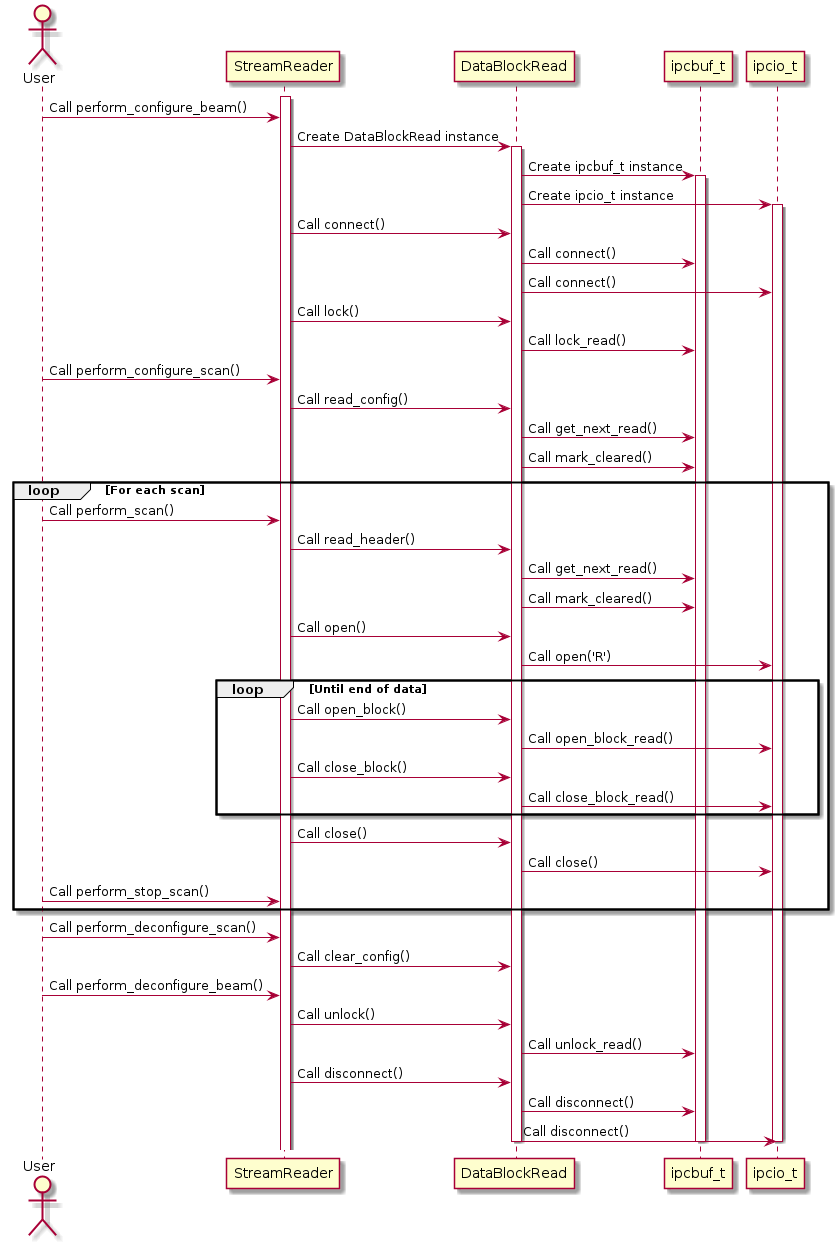

The voltage recorder (DSP AA0.5) consists of a monitoring and control module (DSP.MGMT) that interacts with the MGMT component and controls the other sub-components of the DSP. DSP.MGMT controls instances of DataBlockManager, one for each sub-band. Each DataBlockManager, contains DataBlock instances for the Data and Weights streams. The DataBlock contains ring buffers for the Header (meta-data) and Data (time-series). Each of these ring buffers have a configurable number of elements and element size.

Data Product Structure

The data and weights streams of each scan recorded by DSP.DISK are each written to sequences of files. The data file sequence are written to a data subdirectory and the weights to a weights subdirectory. DSP.DISK splits the data stream into files that are contiguous and each contain approximately 10 seconds data data. The file naming convention for each stream will adhere to:

<TIMESTAMP>_<BYTE_OFFSET>.<FILE_NUMBER>.dada

Where

  • TIMESTAMP is the UTC timestamp of the first integer second of the observation, written in the format: YYYY-MM-DD-HH:MM:SS.

  • BYTE_OFFSET is byte offset of the first sample in the file from the first byte in observation.

  • FILE_NUMBER is index of the file that has been written in the sequence.

File Structure

The files written by DSP.DISK for the data or weights streams use the same file structure, which is compatible with the PSRDADA file format which is compatible with existing Pulsar Timing software such as DSPSR. The file structure is quite simple consisting of an ASCII Header block, typically of 4096 bytes, and then a raw data block.

Header Block

The 4096 byte header block is simply defined as a list of key/value stored in ASCII characters with each pair delimited by newline characters and separated by one or more whitespace characters. The ASCII header is padded with the null character from the final valid header character to the final byte in the header block.

Header Block Fields

Key

Description

Units

Examples

HDR_SIZE

Size of the header

bytes

4096

HDR_VERSION

Version of the header

1.0

TELESCOPE

Name of the telescope observatory

SKALow,SKAMid

RECEIVER

Name of the receiver used

LFAA,SPFRX

INSTRUMENT

TBD

LowCBF

NBIT

Number of bits per real or imag sample

8,16

NANT

Number of antenna present

1

NPOL

Number of polarisations present

2

NDIM

Number of dimensions, 1=Real 2=Complex

1,2

TSAMP

Sampling interval in

microseconds

207.36

BAND

Name of the observing band

Low,Band1,Band2

WT_NSAMP

Number of samples per relative weight

32

UDP_NSAMP

Number of samples per UDP packet

32

UDP_NCHAN

Number of channels per UDP packet

24

UDP_FORMAT

Name of the UDP format

LowPST,MidBand1,…,MidBand5

OS_FACTOR

Over-sampling ratio of data

4/3,8/7

NCHAN

Number of channels

432

FREQ

Centre frequency all channels

MHz

51.19357639

BW

Bandwidth of all channels

MHz

1.562499999936

START_CHANNEL

First absolute channel number

0

END_CHANNEL

Final absolute channel number

432

RESOLUTION

Minimum coherent block of data

bytes

110592

BYTES_PER_SECOND

Data rate

bytes/sec

16666666

DATA_HOST

Network address at which data is recorded

IPv4

127.0.0.1

DATA_PORT

Network UDP port at which data is recorded

9510

LOCAL_HOST

Local address at which data is recorded

IPv4

127.0.0.1

CALFREQ

Frequency of pulsed noise diode - unused

Hz

11.1111111111

OBS_OFFSET

Offset of UTC_START of first sample

bytes

0

SOURCE

Name of astronomical source

J0437-4715

DATA_KEY *

TBD

a000

WEIGHTS_KEY *

TBD

a010

NUMA_NODE

TBD

0

HB_NBUFS *

TBD

8

HB_BUFSZ *

TBD

bytes

4096

DB_NBUFS *

TBD

8

DB_BUFSZ *

TBD

bytes

11059200

WB_NBUFS *

TBD

8

WB_BUFSZ *

TBD

bytes

93600

SCAN_ID

Unique scan identifier provided by TM

123234325345

BEAM_ID

Beam number

1-16

DATA_GENERATOR

Name of test vector that is present

Sine,Random

SCANLEN_MAX

Length of the entire scan

seconds

10

SINUSOID_FREQ

Frequency of Sine test vector, if present

MHz

51.3

UTC_START

Integer second timestamp of first sample

UTC

2023-03-15-03:41:29

PICOSECONDS

Offset from UTC_START of first sample

picoseconds

0

FILE_NUMBER

File number in the file sequence

0

Data Block

The data block segment of a PSRDADA file does not imply any specific sample ordering, it is merely a data container. Any data reader must read the key/value pairs from the header block, and if it understands the meta-data, then interpret the data block as required. The data packing format used by DSP.DISK is defined by the UDP packet sequencing and structure in the CBF to PST data interface.

Common:

npol = 2
ndim = 2

Low CBF / PST:

nchan_per_packet = 24
nsamp_per_packet = 32
nbit = 16

Mid CBF / PST:

nchan_per_packet = 185
nsamp_per_packet = 4
nbit = 8 or 16

Interpretation Algorithm:

# pointer to data block
char * input

nheap = data_bytes / (nchan * npol * ndim * nbit / 8)
packets_per_heap = nchan / nchan_per_heap

for heap in range(nheap):
    for packet in range(packets_per_heap):
        for ipol in range(npol):
            for ichan in range(nchan_per_packet):
                channel = packet * nchan_per_packet + ichan
                for isamp in range(nsamp_per_packet):
                    sample = heap * nsamp_per_packet + isamp
                    for idim in range(ndim):
                        value = float(input[idx]) / scale_factor
                        idx++

Note that the scale_factor is not yet defined. When unpacking the 8- or 16-bit data samples, the Weights Block is used to retrieve the scale_factor that must be used to properly denormalise the quantised samples in the Data Block.

Weights Block

The Weights Block contains the 2 vectors that are extracted from the meta-data in CBF/PSR data stream:

  • Block of relative weights: these describe the the per-antenna RFI mitigation that was performed by the beam-former during signal processing.

  • Scale factors: these are floating point values by which that quantised data must be rescaled prior to subsequent signal processing.

For the purposes of faithfully denormalising the data in the weights block, only the per-packet scale factor is required. For more information on the structure of the relative weights, refer to the CBF to PSR Interface Control Document. The summary is that each UDP packet consists of a 16-bit relative weight for each channel in the packet and a single 32-bit floating point scale factor. These are stored sequentially in the Weights Block for each packet.

Common:

weights_nbit = 16
packet_weights_size = nchan_per_packet * weights_nbit / 8
packet_scales_size = 32 / 8
combined_size = packet_weights_size + packet_scales_size

Iteration Algorithm:

# pointer to weights data blockweights data blockweights data blockweights data block
char * weights_ptr

for heap in range(nheap):
    for packet in range(packets_per_heap):
        scales = weights_ptr
        weights = weights_ptr + packet_scales_size
        weights_ptr += combined_size
