LMC to MCS

MCS provides commands and attributes to turn MCS on and off (through the CBF Controller) as well as commands needed to configure and execute scans through the subarrays. (CBF Subarray)

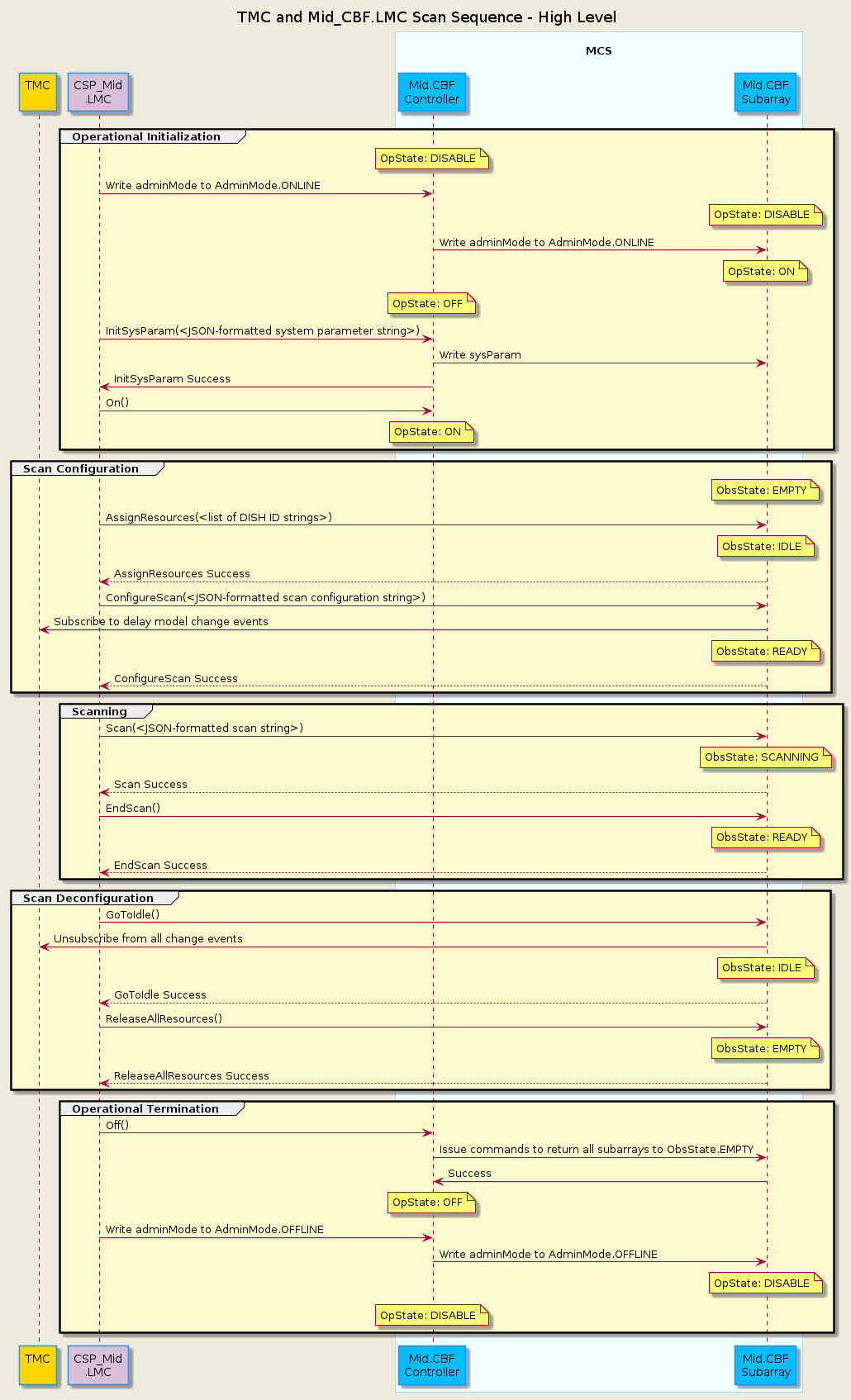

The sequence diagram below shows the interactions between LMC and MCS to assign receptors to a subarray, configure a scan, and run a scan. It shows configuration of one Mid.CBF subarray followed by running a scan on that subarray. It ends with no receptors assigned to the subarray. The calls to write the frequency offset K and frequency offset delta F values only need to be written when there are updates to the values. They must be written to the CBF Controller before the scan configuration.

For full details of MCS Controller see CbfController.

For full details of MCS Subarray see CbfSubarray.

@startuml 'https://plantuml.com/sequence-diagram skinparam backgroundColor #EEEBDC skinparam sequence { ParticipantBorderColor DodgerBlue ParticipantBackgroundColor DeepSkyBlue ActorBorderColor DarkGreen ActorBackgroundColor Green BoxBorderColor LightBlue BoxBackgroundColor #F0FFFF } title TMC and Mid_CBF.LMC Scan Sequence\nHigh Level participant "\nTMC" as tmc participant "CSP_Mid\n.LMC" as lmc box "MCS" participant "Mid.CBF\nController" as controller participant "Mid.CBF\nSubarray" as subarray end box note over controller : OpState: ON lmc -> subarray : AddReceptors(strs) subarray -> subarray : ObsState: IDLE subarray --> lmc : success lmc -> subarray : ConfigureScan(json_str) subarray -> tmc : unsubscribe all events group Delay model subscription point subarray -> tmc : subscribe delay model end group group Doppler subscription point subarray -> tmc : subscribe Doppler phase correction end group group Jones matrix subscription point subarray -> tmc : subscribe Jones matrix end group group Timing beam subscription point subarray -> tmc : subscribe timing beam weights end group subarray -> subarray : ObsState: READY subarray --> lmc : success lmc -> subarray : Scan() subarray -> subarray : ObsState: SCANNING subarray --> lmc : success lmc -> subarray : EndScan() subarray -> subarray : ObsState: READY subarray --> lmc : success lmc -> subarray : RemoveAllReceptors() subarray -> subarray : ObsState: EMPTY subarray --> lmc : success @enduml

CbfController Tango Commands

Command

Parameters

Return type

Action

Off

None

(ResultCode, str)
Set power state to OFF for controller and
subordinate devices (subarrays, VCCs, FSPs)
Turn off power to all hardware
See also Off Sequence

InitSysParam

JSON str*

(ResultCode, str)
Initialize Dish ID to VCC ID mapping and k values
See also InitSysParam Sequence

Standby

None

(ResultCode, str)

None

On

None

(ResultCode, str)

Turn on the controller and subordinate devices

* Schema for JSON string defined in the Telescope Model - Mid.CBF schemas

CbfSubarray Tango Commands

Command

Parameters

Return type

Action

Abort

None

(ResultCode, str)
Change observing state to ABORTED
Send Abort to VCC
Send Abort to FSP <function mode> Subarrays
No action on hardware
See also Abort Sequence

AddReceptors

List[str]

(ResultCode, str)
Assign receptors to this subarray
Turn subarray to ObsState = IDLE if no
receptor was previously assigned

ConfigureScan

JSON str*

(ResultCode, str)
Change observing state to READY
Configure attributes from input JSON
Subscribe events
Configure VCC, VCC subarray, FSP, FSP Subarray
Publish output links.
See also Configure Scan Sequence

EndScan

None

(ResultCode, str)

End the scan

ObsReset

None

(ResultCode, str)
Reset subarray scan configuration
Keep assigned receptors
Reset observing state to IDLE
If in FAULT, send Abort/ObsReset to VCC
If in FAULT, send Abort/ObsReset to
FSP <function mode> subarrays
No action on hardware
See also ObsReset Sequence

Off

None

(ResultCode, str)
Set subarray power mode to off.
Commands FSP<function mode> Subarrays
to turn off
No action on hardware power

On

None

(ResultCode, str)
Set subarry power mode to on.
Command FSP<function mode> Subarrays
to turn on

RemoveAllReceptors

None

(ResultCode, str)
Remove all receptors
Turn Subarray off if no receptors are
assigned

RemoveReceptors

List[str]

(ResultCode, str)
Remove receptors in input list
Change observing state to EMPTY if no
receptors assigned

Restart

None

(ResultCode, str)
Reset subarray scan configuration
Remove assigned receptors
Restart observing state model to EMPTY
If in FAULT, send Abort/ObsReset to VCC
If in FAULT, send Abort/ObsReset to
FSP <function mode> subarrays
No action on hardware
See also Restart Sequence

Scan

JSON str*

(ResultCode, str)

Start scanning

* Schema for JSON string defined in the Telescope Model - Mid.CBF schemas
