Long Running Commands

Before we introduce the concept of a Long Running Command we will discuss how a more traditional Tango control system would go about coordinating asynchronous operations. Then we demonstrate the Long Running Command is just a standardisation of the practice used in more traditional Tango control systems.

Asynchronous operations

A typical Tango device in any control system will at times have to monitor and control operations which take a long time. For example,

• moving motors to a given position

• bringing a piece of equipment to the required temperature

• performing an intensive calculation

• commanding a set of subordinate Tango devices to undertake their own “slow operations”

All these operations take an incredibly long time from the perspective of a CPU, and a client requesting the Tango device to perform these tasks does not want to wait around for them to complete. Instead they want to start an operation asynchronously, get on with other activities and be notified later when the task has completed.

The traditional way this is handled within a Tango control system is as follows:

1. The client will invoke a Tango command which begins the operation. This command returns almost immediately.

2. The client will subscribe to some ad-hoc Tango attributes to know when the operation has completed.

3. At some point the operation will be finished and the Tango device will update the attributes.

The attributes the client subscribes to are ad-hoc in the sense that which attributes to use depend on the operation the client wishes to do. Additionally, a typical traditional Tango device won’t “know about” the operation, it simply updates the attributes as a result of its normal monitoring duties. For example, suppose we wanted to cool some apparatus to a given temperature, the sequence of events for a traditional Tango control system might be as follows:

1. The client invokes the “TurnOnCoolers” Tango command providing a set-point temperature.

2. The device does whatever it has to do to turn on the coolers and then the “TurnOnCoolers” Tango command returns to the client.

3. The client subscribes to the boolean attribute “AtSetPoint”. This attribute is True when the temperature is stable and at the requested set point.

4. At some point later, the device determines via its normal monitoring that the apparatus has reached the set-point temperature and notifies the client by setting “AtSetPoint” to True.

The definition of a Long Running Command

At SKA we have decided that this pattern is common enough to introduce the concept of a Long Running Command (LRC) to standardise the practice.

An LRC is defined as an asynchronous command which is fulfilled by some asynchronous task executed by the Tango device server.

The LRC is initiated by a Tango command which returns a command ID. The client subscribes to LRC attributes which provide information about the various asynchronous tasks fulfilling LRCs. The client uses the command ID to determine which information in the LRC attributes relates to the task fulfilling their LRC. Once the task has finished there will be an associated result which the client will be notified of via the LRC attributes, see Long Running Command client/server interface.

With this definition, coordinating asynchronous operations with LRCs is very similar to how asynchronous operations are coordinated in a traditional control system, as described above. The key differences are the following:

• To know when the asynchronous operation has completed, a client does not subscribe to ad-hoc Tango attributes but instead a standardised set of LRC attributes.

• The entire asynchronous operation itself is considered to be the LRC. Unlike in the traditional control system, this operation then has a result.

• The Tango device keeps track of a task which corresponds to the LRC. In a traditional control system the Tango device would not be explicitly aware of the asynchronous operation taking place.

Warning

There is a potential point of confusion here with regards to the word ‘command’. Each Long Running Command is initiated by a Tango command of the same name. This Tango command <https://pytango.readthedocs.io/en/latest/api/server_api/server.html#tango.server.command> is in some sense part of the LRC. In this document we will not use the word command on its own, instead prefering LRC and Tango command to distinguish between the two.

As an example, consider again the example of cooling some apparatus as we looked at for a traditional Tango control system. When using LRC’s the sequence might look like the following:

1. The client invokes the “CoolTo” Tango command to initiate the “CoolTo” LRC providing a set point temperature.

2. The device kicks off some asynchronous task to start the cooling process then returns a freshly generated command ID to the client.

3. The client subscribes to the longRunningCommandResult attribute to be notified when their command has finished.

4. The task running inside the Tango device decides it has finished and informs the client by setting the value of this attribute to the result. The client inspects the result to determine if the LRC succeeded or failed.

The LRC Input Queue

In addition to providing a standardised interface to asynchronous operations, the idea of a LRC command introduces objects in software which correspond to these asynchronous operations. ska-tango-base takes advantage of this by introducing an LRC input queue. This allows an operator to queue up a sequence of asynchronous operations without having to sit and monitor the Tango device.

Typically, when a Tango device receives an LRC it enqueues a task to the input queue. When that task gets to the front the queue, it is dequeued, the device checks if the task is allowed given the current state of the device (determined via an “is_allowed callback”) and if all is fine, it begins executing the task.

Once the task has completed, successfully or otherwise, the next task is dequeued and is executed (provided it is allowed).

Note

An exception to the use of the Input Queue is the Abort LRC from the SKABaseDevice class. This command must be executed immediately and cannot be queued.

Warning

Like all Tango commands, the Tango command that initiates an LRC also has an is_allowed callback. This “native” Tango is_allowed callback is determining whether the task can be enqueued, this is different from the LRC is_allowed callback that is called after the task is dequeued. The LRC is_allowed callback determines if the task can be executed based on the current state, which might be different to the state the device was in when the task was enqueued.

Long Running Command tasks

As described above, each LRC is fulfilled by a task. Typically, this task is some function running in a separate thread, but this is not required. The task might be some operation running on a piece of hardware and all the Tango device is doing is monitoring the hardware and updating clients with information about the tasks progress.

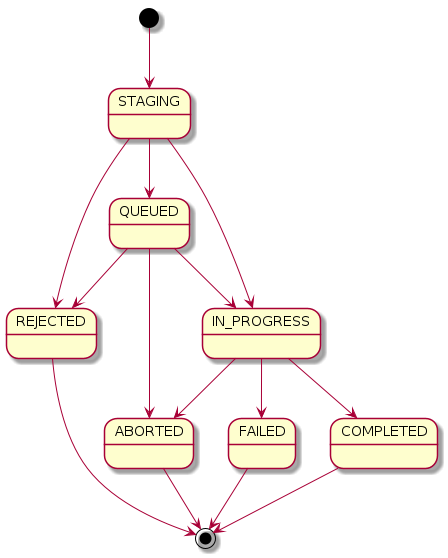

Regardless of what the task physically is, it has an associated TaskStatus which must adhere to the following state machine:

For each task there is a corresponding task_callback which must be called to update the TaskStatus of the task. This task_callback will update the LRC attributes with information about the status of the task and associate it with the appropriate command ID.

In addition to its status, each task has additional data associated with it:

• When the task’s status is one of COMPLETED, FAILED, ABORTED or REJECTED it must have a result. This result can be any JSON encodable python object.

• When the task’s status is IN_PROGRESS it may have an optional progress associated with it. This progress is an integer. It is recommended to be an integer between 0-99 representing an percentage, although a task is free to use any values as appropriate.

Just as with the status, the task_callback must be called to update the task’s result and progress. The task_callback broadcasts this data via the LRC attributes, associating it with the appropriate command ID.
