Command Map

DishManager Command Fan-out

The command fanout page details the Dish component level flow of commands, showing the command, its pre-condition, triggers (command fan-out) and post condition. The reported value is an aggregation of values from the sub component determined by a list of transition rules.

Note

MAINTENANCE mode is not computed from aggregating operating modes it is commanded on dish manager.

Command Execution (ADR-93 not considered)

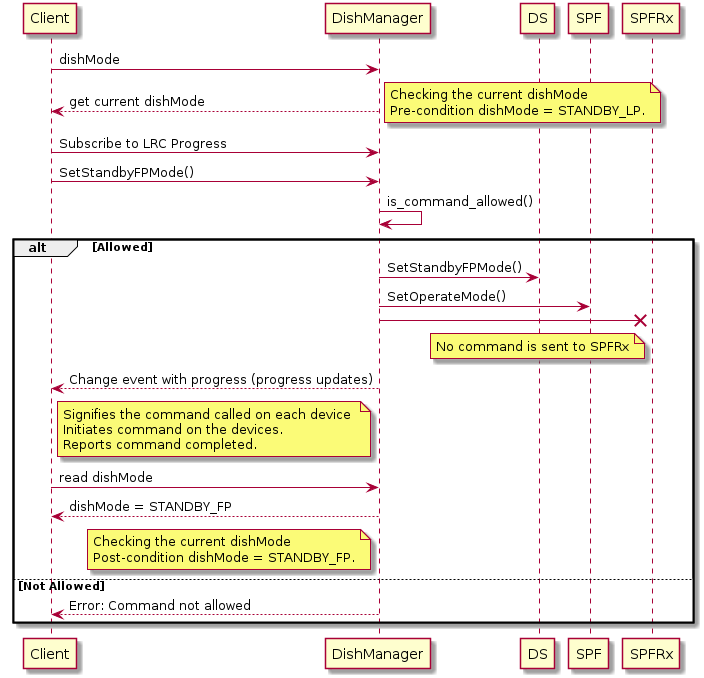

In a naive example, the fan-out only considers the sub-components which have the mapped commands from DishManager. Thus, the propogated respective commands and transition rule aggregation consider all the participating devices. The sequence diagram below shows a transition to STANDBY-FP.

@startuml Client -> DishManager: dishMode DishManager --> Client: get current dishMode note right Checking the current dishMode Pre-condition dishMode = STANDBY_LP. end note Client -> DishManager: Subscribe to LRC Progress Client -> DishManager: SetStandbyFPMode() DishManager -> DishManager: is_command_allowed() alt Allowed DishManager -> DS: SetStandbyFPMode() DishManager -> SPF: SetOperateMode() DishManager -x SPFRx note left of SPFRx: No command is sent to SPFRx DishManager --> Client: Change event with progress (progress updates) note left of DishManager: Signifies the command called on each device \nInitiates command on the devices.\nReports command completed. Client -> DishManager: read dishMode DishManager --> Client: dishMode = STANDBY_FP note left of DishManager: Checking the current dishMode \nPost-condition dishMode = STANDBY_FP. else Not Allowed DishManager --> Client: Error: Command not allowed end @enduml

Command Execution (ADR-93 considered)

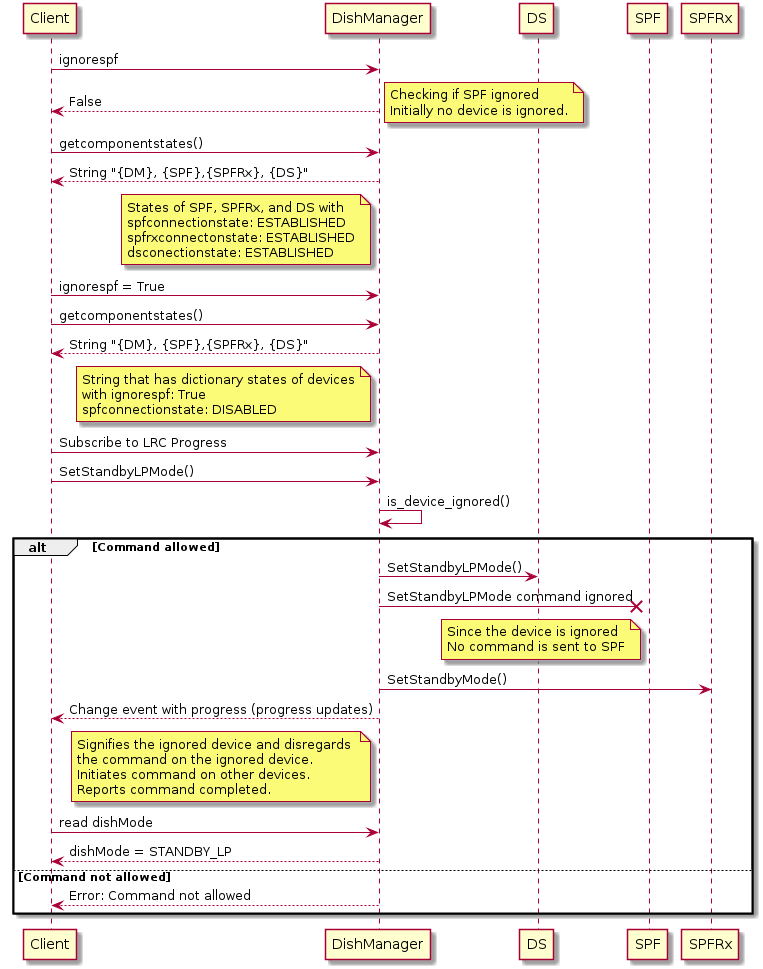

Since ADR-93, DishManager now considers whether a sub-component has been ignored to determine which device receives a command propoagation and is included in the transition rule aggregation. The sequence diagram below shows a transition to STANDBY-LP (using the ignored attributes).

@startuml Client -> DishManager: ignorespf DishManager --> Client: False note right Checking if SPF ignored Initially no device is ignored. end note Client -> DishManager: getcomponentstates() DishManager --> Client: String "{DM}, {SPF},{SPFRx}, {DS}" note left of DishManager: States of SPF, SPFRx, and DS with \nspfconnectionstate: ESTABLISHED\nspfrxconnectonstate: ESTABLISHED\ndsconectionstate: ESTABLISHED Client -> DishManager: ignorespf = True Client -> DishManager: getcomponentstates() DishManager --> Client: String "{DM}, {SPF},{SPFRx}, {DS}" note left of DishManager: String that has dictionary states of devices\nwith ignorespf: True\nspfconnectionstate: DISABLED Client -> DishManager: Subscribe to LRC Progress Client -> DishManager: SetStandbyLPMode() DishManager -> DishManager: is_device_ignored() alt Command allowed DishManager -> DS: SetStandbyLPMode() DishManager -x SPF: SetStandbyLPMode command ignored note left of SPF: Since the device is ignored \nNo command is sent to SPF DishManager -> SPFRx: SetStandbyMode() DishManager --> Client: Change event with progress (progress updates) note left of DishManager: Signifies the ignored device and disregards \nthe command on the ignored device.\nInitiates command on other devices.\nReports command completed. Client -> DishManager: read dishMode DishManager --> Client: dishMode = STANDBY_LP else Command not allowed DishManager --> Client: Error: Command not allowed end @enduml
