How to spin-up a HDB++ archiver using docker compose

Docker compose and the images produced by this repository can be used to spin-up a basic HDB++ archiver for experimentation.

This how-to provides a docker compose file you can use to startup the necessary HDB++ device servers to be able to archive data from Tango devices.

As an example, the docker compose also starts a TangoTest device, configures the archive to collect data from this device and shows how to collect data from the archive using pyhdbpp.

Create the docker compose configuration

This section describes the files you need to create in order to start the HDB++ instance. The docker compose file will use ska-tango-images-tango-dsconfig to configure the Tango database and ska-tango-images-hdbpp-yaml2archiving to configure the HDB++ archiver.

Step 1: Save the following as compose.yaml:

networks:
  tango-net:
    name: tango-net
    driver: bridge

services:
  tango-db:
    image: artefact.skao.int/ska-tango-images-tango-db:11.2.6
    platform: linux/x86_64
    networks:
      - tango-net
    environment:
      - MARIADB_ROOT_PASSWORD=root
      - MARIADB_DATABASE=tango
      - MARIADB_USER=tango
      - MARIADB_PASSWORD=tango
    healthcheck:
      test: ["CMD", "healthcheck.sh", "--connect"]
      start_period: 10s
      interval: 500ms
      timeout: 1s
      retries: 3

  tango-dbds:
    image: artefact.skao.int/ska-tango-images-tango-databaseds:5.23.0
    platform: linux/x86_64
    networks:
      - tango-net
    ports:
      - "10000:10000"
    environment:
      - TANGO_HOST=localhost:10000
      - MYSQL_HOST=tango-db:3306
      - MYSQL_USER=tango
      - MYSQL_PASSWORD=tango
      - MYSQL_DATABASE=tango
    depends_on:
      tango-db:
        condition: service_healthy
    entrypoint: Databaseds
    command:
      - "2"
      - -ORBendPoint
      - giop:tcp::10000
    healthcheck:
      test: ["CMD", "sh", "-c", "/usr/local/bin/tango_admin --ping-database || exit 1"]
      start_period: 10s
      start_interval: 500ms
      timeout: 3s
      retries: 3

  load-tango-config:
    image: artefact.skao.int/ska-tango-images-tango-dsconfig:1.8.0
    platform: linux/x86_64
    networks:
      - tango-net
    environment:
      - TANGO_HOST=tango-dbds:10000
    volumes:
      - ./:/mnt:z
    depends_on:
      tango-dbds:
        condition: service_healthy
    entrypoint: "bash"
    command:
      - "-c"
      - "json2tango --write /mnt/tango.json || [ $$? -eq 2 ]"

  archive-db:
    image: artefact.skao.int/ska-tango-images-hdbpp-timescaledb:2.4.0
    platform: linux/x86_64
    networks:
      - tango-net
    ports:
      - "5432:5432"
    environment:
      - POSTGRES_PASSWORD=tango
    healthcheck:
      test: ["CMD", "pg_isready"]
      start_period: 10s
      start_interval: 500ms
      timeout: 1s
      retries: 3

  archive-cm:
    image: artefact.skao.int/ska-tango-images-hdbpp-cm:2.2.1
    platform: linux/x86_64
    networks:
      - tango-net
    environment:
      - TANGO_HOST=tango-dbds:10000
    depends_on:
      tango-dbds:
        condition: service_healthy
      load-tango-config:
        condition: service_completed_successfully
    healthcheck:
      test: ["CMD", "sh", "-c", "/usr/local/bin/tango_admin --ping-device hdb/cm/1 || exit 1"]
      start_period: 10s
      start_interval: 500ms
      timeout: 1s
      retries: 3
    command:
      - "1"

  archive-es:
    image: artefact.skao.int/ska-tango-images-hdbpp-es-timescaledb:2.4.0
    platform: linux/x86_64
    networks:
      - tango-net
    environment:
      - TANGO_HOST=tango-dbds:10000
    depends_on:
      tango-dbds:
        condition: service_healthy
      load-tango-config:
        condition: service_completed_successfully
    healthcheck:
      test: ["CMD", "sh", "-c", "/usr/local/bin/tango_admin --ping-device hdb/es/1 || exit 1"]
      start_period: 10s
      start_interval: 500ms
      timeout: 1s
      retries: 3
    command:
      - "1"

  load-archive-config:
    image: artefact.skao.int/ska-tango-images-hdbpp-yaml2archiving:0.11.0
    platform: linux/x86_64
    networks:
      - tango-net
    environment:
      - TANGO_HOST=tango-dbds:10000
    volumes:
      - ./:/mnt:z
    depends_on:
      archive-cm:
        condition: service_healthy
      archive-es:
        condition: service_healthy
    command:
      - "--write"
      - "/mnt/archive.yaml"

  tango-test:
    image: artefact.skao.int/ska-tango-images-tango-test:3.10.0
    platform: linux/x86_64
    networks:
      - tango-net
    environment:
      - TANGO_HOST=tango-dbds:10000
    depends_on:
      tango-dbds:
        condition: service_healthy
    healthcheck:
      test: ["CMD", "sh", "-c", "/usr/local/bin/tango_admin --ping-device sys/tg_test/1 || exit 1"]
      start_period: 10s
      start_interval: 500ms
      timeout: 1s
      retries: 3
    command:
      - "test"

Tip

This docker compose file includes a Tango database, similar to that described in How to spin-up a Tango environment using Docker compose. If you want to be able to control the startup of the Tango database separately from the startup of HDB++, remove the tango-db and tango-dbds services from this compose.yaml, set the tango-net network to be external: true and use the compose.yaml described in How to spin-up a Tango environment using Docker compose.

Step 2: Create the configuration file for ska-tango-images-tango-dsconfig by saving the following file as tango.json: in the same directory as your compose.yaml:

{
    "servers": {
        "hdb++cm-srv": {
            "1": {
                "HdbConfigurationManager": {
                    "hdb/cm/1": {
                        "properties": {
                            "ArchiverList": ["hdb/es/1"],
                            "MaxSearchSize": ["1000"]
                        }
                    }
                }
            }
        },
        "hdb++es-srv": {
            "1": {
                "HdbEventSubscriber": {
                    "hdb/es/1": {
                        "properties": {
                            "LibConfiguration": [
                                "libname=libhdb++timescale.so",
                                "connect_string=user=postgres password=tango host=archive-db port=5432 dbname=hdb"
                            ]
                        }
                    }
                }
            }
        }
    }
}

Note

Here we do not include the TangoTest device because this is included by default in the ska-tango-images-tango-db OCI image.

Step 3: Create the configuration file for ska-tango-images-hdbpp-yaml2archiving by saving the following file as archive.yaml: in the same directory as your compose.yaml:

db: "tango-dbds:10000"
manager: hdb/cm/1
archiver: hdb/es/1

configuration:
  - class: TangoTest
    attributes:
      short_scalar_ro:
        polling_period: 3000
        archive_rel_change: 5

Warning

The TangoTest device does not manually push archive events for the short_scalar_ro attribute. This configuration here will enable the Tango polling for this device. If your device does manually push archive events you do not need to set the polling_period.

Start the HDB++ device servers

To start the Tango environment, run the following from the directory containing compose.yaml:

docker compose up -d

After a brief startup time, the Tango database should now be available at TANGO_HOST=localhost:10000 and the HDB++ TimescaleDB database should be available at localhost:5432.

Extracting data from the archiver

This section describes how to extract data from the archiver using pyhdbpp.

The HDB++ archiver will be archiving the short_scalar_ro attribute from the sys/tg_test/1 device.

Step 1: in a virtual environment run the following to install the required dependencies:

pip install --require-virtualenv pyhdbpp psycopg2-binary matplotlib

Step 2: run the following python script:

import pyhdbpp
import matplotlib.pyplot as plt
import numpy as np
from datetime import datetime, timedelta

rd = pyhdbpp.reader(apiclass="pyhdbpp.timescaledb.TimescaleDbReader", config="postgres:tango@localhost:5432/hdb")
yesterday = datetime.strftime(datetime.now() - timedelta(1), "%Y-%m-%d")
values = np.array(rd.get_attribute_values("sys/tg_test/1/short_scalar_ro", yesterday))
plt.plot(values[:, 0], values[:, 1])
plt.savefig("short_scalar_ro.png")

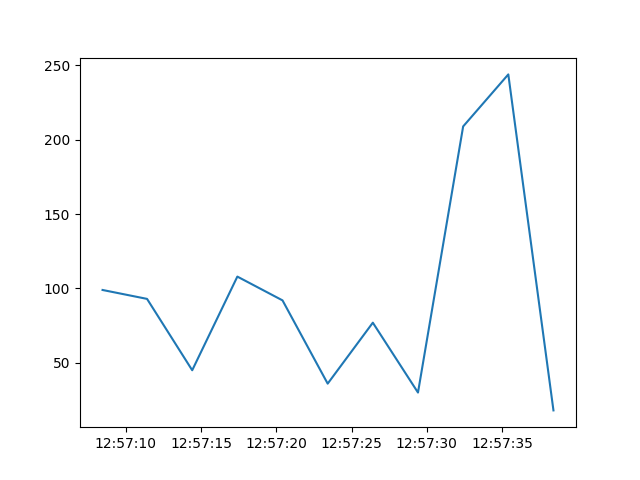

This will save a plot called “short_scalar_ro.png” of the short_scalar_ro attribute since yesterday. The short_scalar_ro attribute changes randomly, however, you should produce something similar to the following plot:

Stopping the Tango environment

The Tango environment and archiver can be stopped by running the following from the directory containing compose.yaml:

docker compose down

Note

Once the Tango environment is stopped, all archive data will be lost. In order to preserver the archive data you must mount a data directory into the archive-db image. See the Docker Volumes documentation for details.
