EDA-Configurator

Configuring new attributes using EDA-Configurator

• Steps to access configurator tool locally.

  1. Once deployment is completed, execute minikube service configurator -n <KUBE_NAMESPACE> --url to get the url of configuration tool.

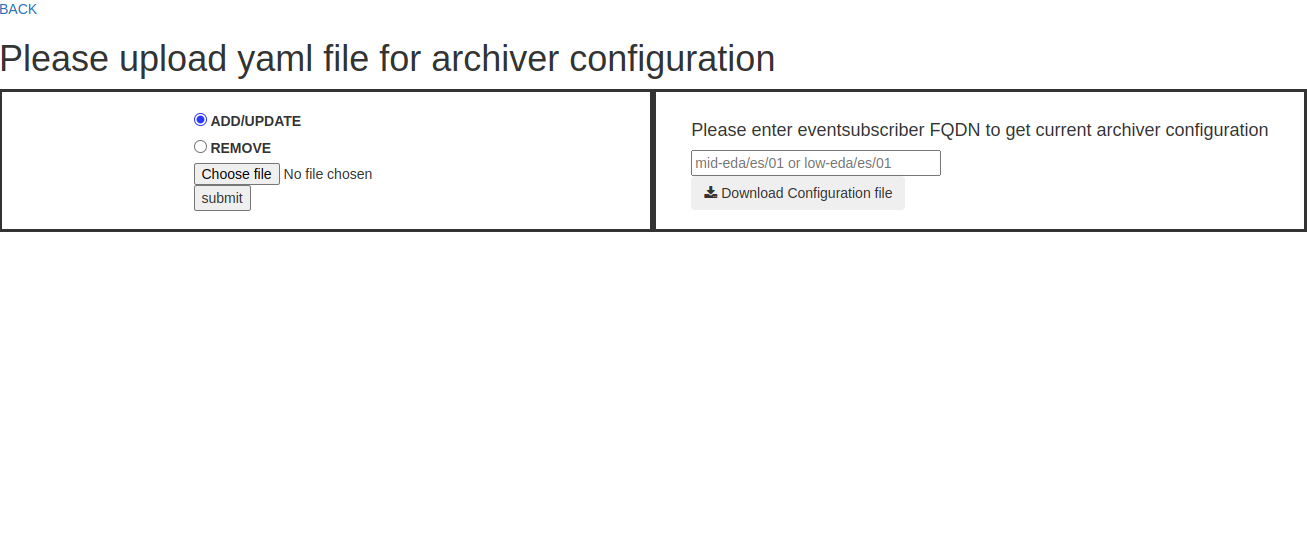

  2. Click on the link, then the title page that would be followed by configurator tool UI as shown below will appear.



• Steps to access configurator deployed inside cluster.

  1. Once deployment is completed , insert the details in below link to access configurator tool.

  http://configurator.{KUBE_NAMESPACE}.svc.cluster.local:8003


  KUBE_NAMESPACE: Namespace of the deployment

  please note: VPN access will be required to access the link.

  2. Link will load the UI as shown above.

• UI DETAILS:

  The UI consists of:

  1. Radio options :

     1. Add/update - This option adds attributes present in the yaml file or changes the configuration if the attributes are present already.

     2. Remove - This option removes attributes present in the yaml file.

  2. File Upload box :

     This option helps to upload the user’s yaml file. Only yaml files are allowed to be uploaded.

  3. input text:

     This text accepts event subscriber FQDN which will be used to provide current configuration.

  4. Download button:

     Click once to download configuration file of given event subscriber.

  5. Reset Table button:

     Click once to erase the contents of the table.

  6. Refresh Table button :

     Once clicked will sync table with latest operations performed with other clients.

  7. Table :

     This will be visible once you perform any operation like add/remove/update.The table consists of timestamp, operation performed and Attribute name.

• HOW TO CONFIGURE:

  1. User can upload the yaml file containing attribute configurations and choose one of the option [add/update,remove].

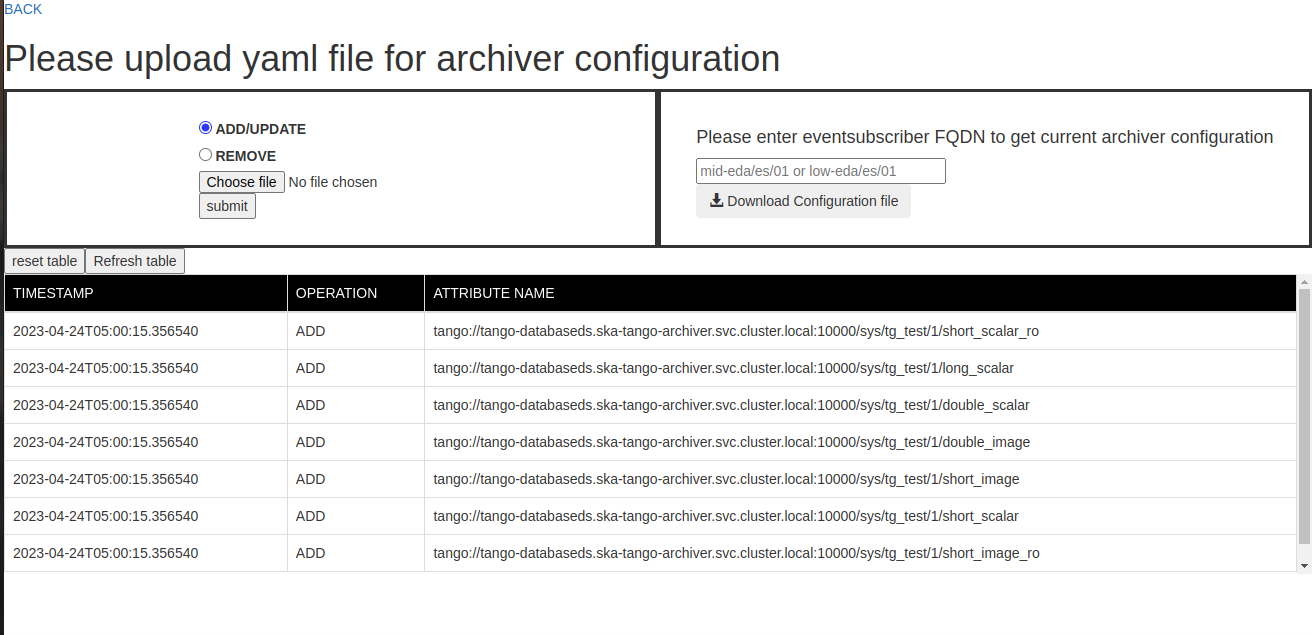

  2. Once submitted , user will able to see table as shown below containing data of attributes archived in the system.



• HOW TO DOWNLOAD:

  User can enter eventsubscriber FQDN in the input box and then click download button to get configuration present in the system.

• API DETAILS:

1. configure-archiver:

   This API helps to configure archiver using yaml file and options[“add_update”/”remove”].

    curl -X 'POST' \
   'http://<IP>:8003/configure-archiver' \
   -H 'accept: application/json' \
   -H 'Content-Type: multipart/form-data' \
   -F 'file=@<YAML FILE>;type=application/x-yaml' \
   -F 'option=add_update'


   curl -X 'POST' \
   'http://<IP>:8003/configure-archiver' \
   -H 'accept: application/json' \
   -H 'Content-Type: multipart/form-data' \
   -F 'file=@<YAML FILE>;type=application/x-yaml' \
   -F 'option=remove'


2. download-configuration:

   This API accepts eventsubscriber name and provides yaml file with current attributes archived into the system.

   curl -X 'GET' \
   'http://<IP>:8003/download-configuration/?eventsubscriber=mid-eda%2Fes%2F01' \
   -H 'accept: application/json'


3. [GET]configurations:

   This API provides history of all the operations performed in the system.

   curl -X 'GET' \
   'http://<IP>:8003/configurations' \
   -H 'accept: application/json'


4. [DELETE]configurations:

   This API deletes history of operations performed. .. code-block:

   curl -X 'DELETE' \
   'http://<IP>:8003/configurations' \
   -H 'accept: application/json'
