ska_oso_pdm.entities.common.field_configuration¶

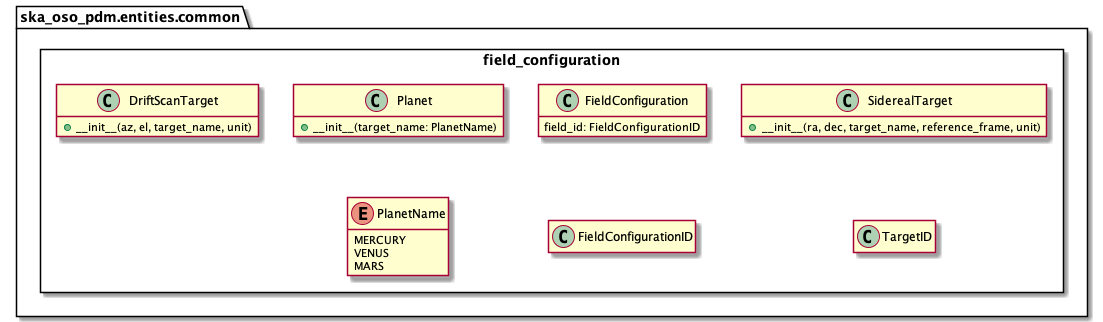

The field_configuration module models SB data model entities concerned with receptor pointing and mapping (source coordinates, survey fields, etc.). The contents of the module are presented in the diagram below.
An example serialisation of this model to JSON is shown below.
# JSON modelled specifically by field_configuration
...
"field_configurations": [
{
"field_id":"science fields",
"targets": [
{
"target_id": "my first science target",
"kind": "SiderealTarget",
"target_name": "NGC6251",
"reference_frame": "ICRS",
"ra": "23:45:45.67",
"dec": "-21:23:45.67"
},
{
"target_id": "my second science target",
"kind": "SiderealTarget",
"target_name": "M51",
"reference_frame": "ICRS",
"ra": "23:45:45.93",
"dec": "-21:23:44.92"
}
]
}
],
...
Another JSON example with DriftScan target is shown below.
...
"field_configurations": [
{
"field_id": "target field",
"targets": [
{
"target_id": "target #1",
"kind": "driftscan",
"target_name": "Drift scan at 45 degs",
"reference_frame": "HORIZON",
"az": 180.0,
"el": 45.0
},
{
"target_id": "target #2",
"kind": "driftscan",
"target_name": "Drift scan at 85 degs",
"reference_frame": "HORIZON",
"az": 180.0,
"el": 85.0
}
]
}
],
...
The entities.common.field_configuration module defines a Python representation of the target of the observation.
-
class
FieldConfiguration
(field_id: Optional[str] = None, targets: Optional[Sequence[ska_oso_pdm.entities.common.field_configuration.Target]] = None)[source]¶ FieldConfiguration represents the argument for SKA scheduling block.
-
FieldConfigurationID
¶ alias of
builtins.str
-
class
SiderealTarget
(ra: Union[float, str], dec: Union[float, str], target_name: Optional[str] = None, reference_frame: Optional[str] = 'icrs', target_id: Optional[str] = None, unit: Union[str, Tuple[str, str]] = ('hourangle', 'deg'))[source]¶ SiderealTarget represents the argument for SKA scheduling block.
-
coord
¶ abstract method : Target encapsulates source coordinates and source metadata.
-
-
class
DriftScanTarget
(az: float, el: float, target_name: Optional[str] = None, target_id: Optional[str] = None, unit: str = 'deg')[source]¶ DriftScanTarget defines AltAz target for SKA scheduling block.
-
coord
¶ abstract method : Target encapsulates source coordinates and source metadata.
-
-
class
Planet
(target_name: ska_oso_pdm.entities.common.field_configuration.PlanetName, target_id: Optional[str] = None)[source]¶ Planet represents the argument for SKA scheduling block.
-
coord
¶ abstract method : Target encapsulates source coordinates and source metadata.
-
-
TargetID
¶ alias of
builtins.str
