Octopus Suite Overview

Octopus Suite

Disclaimer This suite repository and setup are not an official SKAO deployment. It is intended for rapid testing of new functionalities and for simulating the devices we work on at k8s.stfc.skao.int/integration-octopus/ska-octopus-frontend.

The Octopus Suite repository glues together the backend and frontend services, plus their Helm charts, Docker Compose files, and helper scripts.

  • SKA-Octopus-Backend (📘 ska-octopus-backend): Ariadne (GraphQL + subscriptions), in-memory pub/sub, MongoDB for user preferences storage

  • SKA-Octopus-Frontend (📘 ska-octopus-frontend): React 19 + Vite + Apollo Client + Redux Toolkit + react-grid-layout

  • Dev & Deployment: K8s helm charts or Docker + Docker Compose

⚙️ How It Works

  1. Octopus-Backend

    • HTTP & WebSocket: FastAPI serves GraphQL queries and real-time subscriptions.

    • Async Resolvers: Fully non-blocking async def functions.

    • In-memory Pub/Sub: Live feeds are pushed and streamed via an in-process pub/sub bus.

    • User Preferences:

      • preferences(userId: String!): JSON! query

      • setPreferences(userId: String!, config: JSON!): JSON! mutation

      • Data stored in MongoDB (motor) under user_id.

  2. Octopus-Frontend

    • Apollo Client: Splits HTTP queries and WebSocket subscriptions.

    • Redux Store: All live data (history, feeds, etc.) managed globally.

    • Widget System:

      • Each data source gets its own independent widget.

      • Layout is responsive and supports drag/drop widgets placement.

    • User Preferences UI:

      • Settings modal for toggling “Edit mode” and other preferences.

      • State saved immediately via GraphQL mutations.

  3. Dev Environment

    • Kubernetes: make k8s-install-charts

    • Docker Compose: docker-compose up --build

🏗️ Architecture Overview

  • Backend service mesh: ska-octopus-backend unifies multiple backends (TangoGQL, HDB++, EDA, ODA, OET) behind a single GraphQL API. A dynamic SDL is generated via the config-ui (see the Config UI section) and merged with the static widget schema, ensuring subscriptions, queries, and mutations remain discoverable across widgets.

  • Frontend application shell: ska-octopus-frontend initializes preferences, handles user authentication, and renders workspaces. On load it fetches widgets/widgetBundle, streams IIFE bundles through src/widgets/remoteLoader.ts, and allows widgets to self-register without requiring a host rebuild.

  • Shared contract: Preferences, workspaces, and widget metadata flow consistently through GraphQL. The backend’s in-memory pub/sub powers live updates, MongoDB persists user preferences and widget catalog entries, and Docker/Helm integrate both services within this suite repository.

The suite repository (ska-octopus-suite) serves as the orchestration layer—packaging charts, Docker Compose configurations, and end-to-end tests—while the frontend and backend evolve independently.

🧩 Why this stack?

Concern

Choice

Rationale

API & Realtime

FastAPI + Ariadne

Async-first ASGI framework with GraphQL subscriptions for realtime data.

Pub/Sub transport

In-process bus

Ultra-low latency pub/sub without external dependencies; great for dashboards.

Background tasks

Async-only (no Celery/Dramatiq for now)

Current tasks are lightweight; no separate worker queues needed yet.

Data storage

MongoDB + Motor

Flexible, schema-less JSON storage per user.

Frontend framework

React 19 + Vite

Fast bundling, React Suspense and startTransition support.

State management

Apollo Client + Redux Toolkit

Subscriptions + centralized store for multi-widget reactivity.

Layout system

react-grid-layout

Drag-and-drop, responsive dashboard widgets.

Dev environment

K8s or Docker Compose

Easy local setup; consistent deployment experience.

Note: If heavier background jobs are introduced later (e.g., long-running processing, scheduled tasks), an external broker can be added alongside the existing in-memory pub/sub. Current architecture is async-only by design for simplicity and high performance.

⚙️ Config UI

Config UI

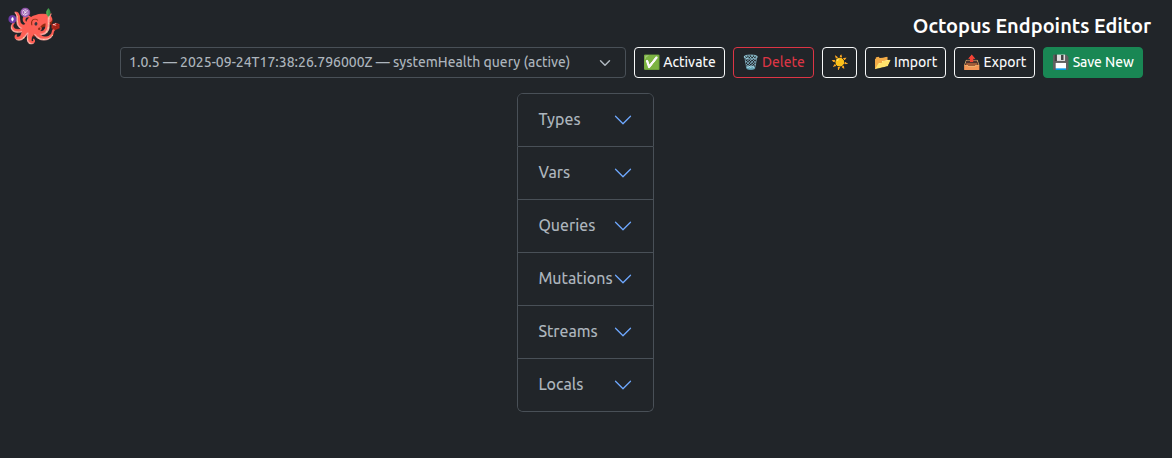

The Config UI allows dynamic editing, adding, and removal of the JSON structure defining the application’s behavior. Integrated with CodeMirror, it provides a Python code editor to customize local functions that combine or convert different data sources, enhancing flexibility and ease of configuration.

Key features:

  • Dynamic JSON configuration: Modify app endpoints and schema easily.

  • Python function customization: Write local Python code directly within the configuration UI.

  • Realtime feedback: Immediate validation and linting of Python code.

  • Import/Export configurations: Quickly migrate or backup settings with simple JSON import/export.

🧱 Detached Widget Model

  • Backend registry: Administrators add or upgrade widgets via ⚙️ -> Widgets Store. Only whitelisted hosts/scopes (artefact.skao.int, unpkg…) [Configurable by a deployment var WIDGET_ALLOWED_NPM_SCOPES] are accepted, bundles are fingerprinted, and multiple versions can coexist for safe rollback.

  • Runtime delivery: The frontend iterates over the catalog, downloads bundles through ska-octopus-backend using GraphQL, and evals them in the browser. Each widget calls Octopus.registerWidget, so layout grids redraw immediately and streams/queries/subscriptions start only when needed.

  • Error isolation: Each widget is wrapped in an ErrorBoundary so that rendering failures or runtime errors in a single widget do not crash the entire dashboard. Instead, users see a clear ⚠️ Failed to load this widget message with more details, while other widgets continue operating normally, preserving overall resilience.

  • Operational blast radius: Faulty widgets can be removed from the catalog or pinned to an earlier version without redeploying the core app. Backend caching (memory + tarball cache) avoids thundering herds, and per-widget subscriptions prevent one component from starving another.

  • Developer ergonomics: Local development can point to iife/ builds, while production widgets ship as npm packages with their own pipelines. The detached model lets teams iterate on domain-specific UI without waiting for a monolithic release train.

🔮 Why This Architecture Rocks

  • Async > Threads: Single-threaded async serves thousands of connections efficiently.

  • In-memory Pub/Sub > Polling: Real-time data pushed instantly to clients without external brokers.

  • GraphQL Subscriptions > Custom WebSockets: Declarative schema-based real-time updates.

  • Persisted Preferences: User settings stored server-side, surviving across sessions and devices.

  • Isolated Components: Widgets don’t block or crash each other.

  • Monolithic Dev Setup: Easy K8s or Docker Compose with hot reload for frontend and backend.

Memory footprint note

  • Each uvicorn worker loads the full stack (FastAPI, Ariadne, motor, asyncpg, PyTango, etc.), so expect ~350–400 MiB RSS per worker. Adjust WORKERS to trade concurrency for total RAM.

  • We currently keep heavy libs like PyTango to allow full environment exploration; as TangoGQL becomes the sole path for Tango data, we’ll drop those deps to slim the baseline.

🆚 Grafana Comparison

  • Strengths vs Grafana GraphQL-native telemetry that matches SKAO datasets; detached widget packaging for bespoke React apps; per-user workspaces and preferences without Grafana’s tenancy constraints; leaner deployment footprint tailored to SKAO auth and infrastructure.

  • Gaps vs Grafana Smaller widget ecosystem and fewer generic visualizations; limited built-in alerting/RBAC/provisioning compared to Grafana’s batteries-included stack; widget maintenance depends on internal teams rather than a global marketplace; multi-tenant guardrails are still emerging.

🚀 Quick Start

Prerequisites

  • K8s installation (recommended) or Docker & Docker Compose

  • (Optional for Devs) Node.js & npm for local ska-octopus-frontend or widgets development

Docker Compose Branding Overrides

  • Drop your logo files under assets/ (or a subfolder) so docker-compose mounts them into /usr/share/nginx/html/branding/ inside the frontend container.

  • Point MAIN_LOGO, SECONDARY_LOGO_WHITE, and SECONDARY_LOGO_DARK in runtime-config.js to /branding/<filename> or a full URL to switch the header artwork without rebuilding the image.

  • Override FOOTER_COPYRIGHT_LABEL for the owner name and FOOTER_COPYRIGHT_YEAR (set to auto or a specific year string) in the same file to customise the footer text.

  • Apply your changes with docker-compose up -d --force-recreate ska-octopus-frontend or a full docker-compose up -d to refresh the container with the new branding.

Run with Kubernetes

make k8s-install-charts

The target installs the packaged ska-octopus Helm chart into the namespace defined by KUBE_NAMESPACE (defaults to ska-octopus-suite) using the release name stored in HELM_RELEASE (defaults to ska-octopus). Override the variables on the command line if you want to deploy to a different namespace or use a different release name:

HELM_RELEASE=my-octopus KUBE_NAMESPACE=my-namespace make k8s-install-charts

Run with Docker

# From repo root
docker-compose up --build

  • SKA-Octopus-Backend on http://localhost:8000/graphql (HTTP + WS)

  • SKA-Octopus-Frontend on http://localhost:3000/

Local SKA-Octopus-Frontend Dev

cd ska-octopus-frontend
npm install
npm run dev

env file (ska-octopus-frontend/.env):

VITE_GRAPHQL_HTTP=/graphql
VITE_GRAPHQL_WS=ws://localhost:3000/graphql

Configure secrets (Kubernetes)

  1. Create the Kubernetes secrets you want the chart to read from. Example secrets that match the defaults:

    # EDA DSN exposed to the backend as HDBPP_PG_DSN_EDA
kubectl -n ska-octopus-suite create secret generic octopus-eda-readonly-postgresenv \
  --from-literal=HDBPP_PG_DSN='postgresql://postgres:tango@hdbpp-hdbpp-db:5432/hdb' \
  --dry-run=client -o yaml | kubectl apply -f -

# Optional secondary DSN exposed as HDBPP_PG_DSN_SECONDARY
kubectl -n ska-octopus-suite create secret generic octopus-secondary-eda-readonly-postgresenv \
  --from-literal=HDBPP_PG_DSN='postgresql://postgres:tango@hdbpp-hdbpp-db:5432/hdb' \
  --dry-run=client -o yaml | kubectl apply -f -

# JWT secret consumed by the backend deployment
kubectl -n ska-octopus-suite create secret generic octopus-jwt \
  --from-literal=token='s3cr3t' \
  --dry-run=client -o yaml | kubectl apply -f -

# Config UI password exposed to the backend as CFG_UI_PASSWORD
kubectl -n ska-octopus-suite create secret generic octopus-config-ui-password \
  --from-literal=cfg-ui-password='super-secret-password' \
  --dry-run=client -o yaml | kubectl apply -f -

# Local auth users exposed as OCTOPUS_AUTH_USERS (JSON payload)
kubectl -n ska-octopus-suite create secret generic octopus-auth-users \
  --from-literal='auth-users.json=[{"username":"admin","password":"change-me","role":"Admin"}]' \
  --dry-run=client -o yaml | kubectl apply -f -

  2. Point the chart at the secrets

The backend Helm chart expects each environment variable under vars to be defined as a map. Each field has a specific meaning:

  • value: A literal fallback used if the referenced secret is missing.

  • secretName / secretKey: Identify the Kubernetes secret and key that the chart should read.

  • useSecretLookup:

    • true (default) → the chart checks if the secret exists and falls back to value if it does not.

    • false → only use if the Helm release itself creates the target secret.

The default configuration in ska-octopus/charts/ska-octopus/values.yaml is already set up for the commands shown above:

ska-octopus-backend:
  authUsers:
    secretName: octopus-auth-users
    secretKey: auth-users.json
    optional: false
  # Environment variables exposed individually remain under `vars`
  vars:
    JWT_SECRET:
      secretName: octopus-jwt
      secretKey: token
      useSecretLookup: true
    HDBPP_PG_DSN_EDA:
      secretName: octopus-eda-readonly-postgresenv
      secretKey: HDBPP_PG_DSN
      useSecretLookup: true
    HDBPP_PG_DSN_SECONDARY:
      secretName: octopus-secondary-eda-readonly-postgresenv
      secretKey: HDBPP_PG_DSN
      useSecretLookup: true

If your cluster uses different secret names or keys, override these values (or add new entries under vars) in your own values file.

To bake the JSON payload directly into a release-managed secret, set authUsers.createSecret: true and provide authUsers.value with compact JSON (list or dict of user specs). The backend parses this JSON at startup to seed the local /auth/login user database.

At runtime, both the backend and the Config UI can consume these environment variables. They can be used to connect to different backends, passed as parameters, or simply displayed.

🧪 End-to-End Testing

Run the Cypress smoke suite against an existing Kubernetes deployment with a single command:

make k8s-test

This delegates to .make/k8s.mk and launches an ephemeral pod running the cypress/included image inside the target namespace. The pod receives the cypress/ folder, installs dependencies with npm ci, executes npx cypress run, and stores JUnit output under build/cypress/. To tweak the service endpoints or switches, override the helper variables:

CYPRESS_BASE_URL=https://octopus.example.org \
CYPRESS_BACKEND_URL=https://api.example.org \
K8S_TEST_IMAGE_TO_TEST=cypress/included:13.8.0 \
make k8s-test
