FHS-VCC All Bands Controller - ICD MCS to FHS-VCC

Overview

This document serves as the internal ICD between MCS and the FHS-VCC. The FHS-VCC All Bands Controller provides the control layer between MCS and the subordinate FHS-VCC devices. Implemented as a Tango Device server using the 1.0.0+ version of the ska-tango-base classes.

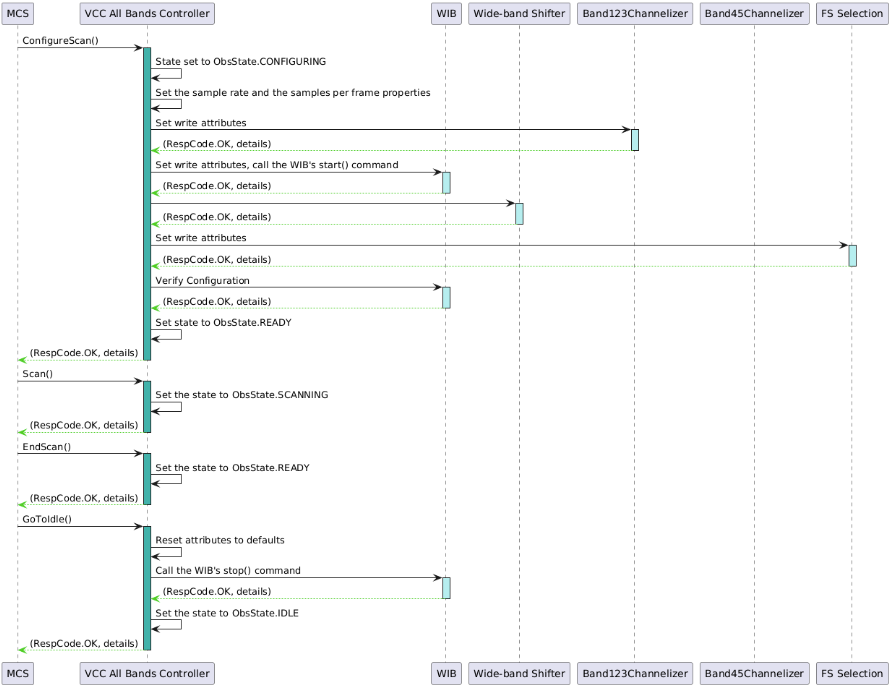

Scenario Diagram

Device Attributes

Name	Type	Read/Write	Description
dishID	DevString	R	Associated dish identifier
vccGains	Array<Tango::DevDouble>	R	Read attribute for applied gain multipliers size=Num of selected FSs * pol.
pssGains	Array<Tango::DevDouble>	R	Read attribute for applied gain multipliers on fine channels to enable PSS`.
tcbGains	Array<Tango::DevDouble>	R	Read attribute for applied gain multipliers used for FSs selected for TCB channels`.
frequencyBand	DevEnum	R	Frequency band that is currently configured
configID	DevString	R	Identifier of the current scan configuration
scanID	DevULong	R	Identifier of the current scan
inputSampleRate	DevULong64	R	Input sample rate read attribute
frequencyBandOffset	DevLong[2]	R	Frequency band offset, received during scan configuration Length 2 since band 5 needs two values specified, other bands will only use the first value
requestedRFIHeadroom	Scalar	R/W	Requested RFI Headroom, in decibels (dB), to be applied when Auto-set gains is requested (default: 3dB)
subarrayID	DevUShort	R	Current Subarray the VCC is a member of.
noiseDiodeMeasurementInterval	DevFloat	R/W	Measurement interval for Noise Diode calculations, provided as an integer number of samples at the channel resolution where the power is being measured. TODO: understand how it relates to power meter configuration & reporting.
noiseDiodeReportingInterval	DevUShort	R/W	The reporting interval is an integer number of measurement intervals, applicable to Noise Diode reporting. TODO: understand how it relates to power meter configuration & reporting.

Device Properties

Name	Type	Description
vcc123ChannelizerFQDN	DevString	Fully Qualified Domain name (FQDN) for the 1,2& 3 OSPPFB Channelizer lower level device
vcc45_1ChannelizerFQDN	DevString	FQDN for the 4&5 stream 1 OSPPFB Channelizer lower level device
vcc45_2ChannelizerFQDN	DevString	FQDN for the 4&5 stream 2 OSPPFB Channelizer lower level device
vcc123PowerMeterFQDN	DevString	FQDN for the Wideband Power Meter for B123
vcc45_1PowerMeterFQDN	DevString	FQDN for the Wideband Power Meter for B45.1
vcc45_2PowerMeterFQDN	DevString	FQDN for the Wideband Power Meter for B45.2
fsPowerMeters	Array of DevStrings (size = 26)	FQDNs for the FS powers meters on each of the 26 lanes following the FS Selection IP BIock
fsPacketizerFQDN	DevString	FQDN for the FS Packetizer
fsSelectionFQDN	DevString	FQDN for the FS Selection lower level device
widebandFrequencyShifterFQDN	DevString	FQDN for Wideband Frequency Shifter lower level device
widebandInputBufferFQDN	DevString	FQDN for Wideband Frequency Input Buffer lower level device
macFQDN	DevString	FQDN for Ethernet Media Access Control (MAC) lower level device likely only needed for testing purposes in loopback mode

Publish Events

Name	Type	Description
healthState	HealthState Enum	Publishes a change event on the health state if any changes were detected from the low-level devices, the value holds the reason for the change in state.
gains	Array<Tango::DevDouble>	Publishes a change event if the gain values have been updated as a result of a gains stabilization.
pssGains	Array<Tango::DevDouble>	Publishes a change event if the gain values have been updated as a result of a gains stabilization across PSS fine channels.
tcbGains	Array<Tango::DevDouble>	Publishes a change event if the gain values have been updated as a result of a gains stabilization on selected FSs used for TCB.
frequencyBand	DevEnum	Change event published if the band changed successfully.

Commands

Name	Input Type	Input Parameter	Allowed in modes	Description
ConfigureScan()	JSON String	See below.	IDLE, READY	Configure parameters for the next scan(s). Parameters are propagated down to low-level device servers. Sets the state to CONFIGURING, if the inputted JSON can be successfully parsed the state is set to READY.
Scan()	String	The identifier of the current scan	READY	Start the scan using the last set of parameters passed via the ConfigureScan() command. The state is then set to SCANNING. If Transient Capture Buffer (TCB) is configured, scan will begin buffering of FS packets dependent on the number of configured search windows.
GoToIdle()	void	n/a	READY	Resets the device and changes the state to IDLE
Abort()	void	n/a	IDLE, READY, SCANNING	Sets the device state to ABORTED and aborts all running/queued commands
EndScan()	void	n/a	SCANNING	Completes the scan and changes the device back to the READY state. If Transient Buffer Capture is configured, ending the scan will stop buffering packets and clear the applicable buffers.
ObsReset()	void	n/a	ABORTED, FAULT	Reset the observing device from a FAULT/ABORTED obsState to IDLE. Initially sets the state to RESETTING, resets the configuration of the device to the default and then sets the state to IDLE on completion.
AutoSetFilterGain()	Scalar	Requested RFI headroom.	SCANNING	This command triggers the algorithm to determine and adjust filter gains and levels and takes as input the optional parameter Headroom.
AutoSetTCBGain()	Scalar	Dwell Time	SCANNING	This command triggers algorithm that measures and adjusts Transient Capture Buffer (TCB) re-quantizer gain settings to provide optimal sensitivity. ‘Dwell time” specifies how long to integrate to determine the quantizer gain settings (seconds).  Applies gain corrections on fine channels.
UpdateSubarrayMembership()	int	Subarray ID		Command to update the current subarray membership of the VCC. If the VCC is not currently assigned to a subarray, i.e. its subarray_id attribute is 0, then its membership is updated and the subarray_id attribute is set appropriately. Otherwise, if the current subarray_id > 0, indicating the VCC has already been assigned to a differing subarray, then the command is REJECTED. The VCC’s subarray membership can also be cleared using this command, by providing a subarray ID of 0.
OffloadTransientDataCapture()	Timestamp	Starting epoch to begin transient capture	SCANNING	Command which triggers the offload of transient data for the given VCC. Data is offloaded relative to the start time of the capture and the duration configured within the scan. On command execution, writing to the transient buffer is locked, and it is iterated over to construct a capture, starting at the provided start time and lasting for the provided duration, before it is transmitted over the 400GbE to SDP.
UpdateDelayModels()	JSON string	See below.	READY, SCANNING	Update delay tracking with new High order delay models required for PSS processing.
GetStoredGainValues()	int	Optional - Index for a frequency band {1-6}	N/A	Returns a 2-Dimensional list of previously set auto-set gains.  - Valid band index provided - Returns a 2-Dim arr with at index 0 the gains applied for the given band - Valid band index provided with no prior scan for that band - Returns an empty list - No index provided - Returns a 2-Dim arr of format [i → frequency band, j → gain value for channel i, pol % 2]
UpdateJonesMatrix()	(TBD)			Placeholder: Applies updates to Jones Matrix polarization correction for fine channels.
GetBandpassCorrectionCoefficients()	(TBD)			Placeholder: TBD: Retrieves Bandpass correction coefficients required when PSS is configured.

Command Parameter Definitions

UpdateSubarrayMembership(int)

Parameters

Name	Type	Description	Range
subarray_id	int	Subarray ID to assign this VCC to. If 0, the subarray membership of the VCC is reset.	0-16

Returns

Returns ResultCode.OK if the VCC could be successfully assigned or the value has been cleared. The command is a LRC to ensure no race conditions can occur between subarrays.

Errors

Returns ResultCode.REJECTED if the VCC is already assigned to a subarray and the ID provided is not equal to 0. Membership must be cleared before reassignment.

ConfigureScan()

Parameters

Name	Type	Description	Range
config_id	string	Identifier of the current scan configuration
expected_dish_id	string	Expected Dish ID for the VCC	MKT000-MKT063 or SKA001-SKA133
frequency_band	string	Frequency band for the current scan	(“1”,”2”,”5a”,”5b”)
frequency_band_offset_stream_1	long	See frequencyBandOffset attribute description
frequency_band_offset_stream_2	long	See frequencyBandOffset attribute description
b123_power_meter	PowerMeterConfig	Configuration for the wideband power meter pre-B123 OSPPFB Channelizer
b45_1_power_meter	PowerMeterConfig	Configuration for the wideband power meter pre-B45 sub-band 1 OSPPFB Channelizer
b45_2_power_meter	PowerMeterConfig	Configuration for the wideband power meter pre-B45 sub-band 2 OSPPFB Channelizer
fs_lanes	Array of FSLaneConfig(size = 26)	Configuration the set of 26 FS power meters, each element specifies config for relative to an FS lane following the FS Selection handling either 10 FS in Band 1&2, 15 in Band 4 or 26 in Band 5 (a or b).
fs_select_start_channels	Array of int {0-2} (size = 2)	Required in band 5 (a or b) the two streams produce 15 frequency slices each through the B45.1 and B45.2 channelizers for a total of 30 frequency slices however, only 26 outputs are available within the FS selection IP block. Therefore, the start channel index is used to mitigate the number of FSs for both streams. fs_select_start_channel[0] → sets the starting index for 13 FS selected from stream 1 fs_select_start_channel[1] → sets the starting index for 13 FS selected from stream 2
band_5_tuning or stream_tuning	Array of Floats	Center frequency for the band-of-interest. Required if band is 5a or 5b; not specified for other bands	5A: 5.85 to 7.25 GHz 5B:  9.55 to 14.05 GHz
noise_diode_transition_holdoff_count	float	Number of sample frames that indicates the worst case state transition in the event of packet loss/corruption within the Wideband Input Buffer NOTE: Make this seconds which will have a different set of ranges. likely be tiny.	0 to 65535
dish_sample_rate	uint64_t	Dish sample rate factoring in the frequency band and the freq_offset_k	3,960,001,800 to 11,891,998,800
vcc_gains_stream_1	Array of DevDouble (size = num_vcc_channels_ * num_polarizations_)	Specifies the gain of each channel in the VCC for stream 1 (e.g. VCC-B123 OSPPFB or VCC-B45 OSPPFB 1)	When frequency band is: 12&3 → Size = 20, or, 4, 5a/5b → Size = 30
vcc_gains_stream_2	Array of DevDouble (size = num_vcc_channels_ * num_polarizations_)	Specifies the gain of each channel for the VCC-B45 OSPPFB 2	Size = 30
is_pss	bool	Is PSS being configured?
pss	PSSConfig	The PSS configuration, used if PSS is being configured (is_pss=True)

Power Meter Config

Name	Type	Description	Range
averaging	float	Averaging interval in seconds. The power meters implement a block moving average, when interval t ends the accumulated power is divided by t to produce an average power value. The power accumulators are then reset to start a new block average. (Used for Wideband and FS lanes power meters)
flagging	int	Specifies the mode used for to handle flagged data.	0 - Ignore 1 - Use 2 - Saturate and use

FS Lane Config Definition:

Name	Type	Description	Range
vlan_id	uint16	VLAN identifier for use in network switch map to the given FS to an FSP (Used for the Packetizer)	$[[2, 1001], [1006, 4094]]$
fs_id	int	Identifier of the frequency slice	$[1,26]$
power_meter	PowerMeter Config	Power Meter configuration to configure the ND Power Meter for the fs lane equal to fs_id.

PSS Config

Name	Type	Description	Range
search_window	Array of SearchWindow Config	Provides configuration for up to two 300 MHz Search Windows, providing input Transient Capture Buffer and/or PSS beam-forming.	Size=1 or 2
rdt	RDTConfig	See below definition. TBD: The size of this config relative to the 6 RDTs.
enable_tcb	bool	Is Transient Capture Buffer enabled?
tcb_fs_ids	int[2]	FS Identifiers for use in the TB FS Selection block prior to requantization. Assumption packetizing information can be derived from the vcc_id and search_window_id.
tcb_period_before_epoch	int	Period before requested epoch to capture transient data.	2s or 4s
tcb_period_after_epoch	int	Period after requested epoch to capture transient data.	20s or 40s
tcb_bit_size	int	The bit size of the FS to be requantized to for use in the buffers.	4 or 8
tcb_destination_addr	string	Destination address for offload of transient buffer data. This must be validated to map to the SDP port, due this TBD if we need to provide this configuration option if we know the destination.

SearchWindow Config

Name	Type	Description	Range
search_window_id	int	Identifier of the 300MHz Search Window. Unique within a sub-array.	1-2
search_window_tuning	int	The Search Window tuning in Hertz (Hz) is provided in absolute terms as RF center frequency. Based on this, Mid.CBF calculates its tuning within the data stream received from the receptor.	The Search Window must be placed within the observed Band. If partially out of the observed Band a warning is generated. If completely outside of the observed Band an exception is generated and configuration is rejected.
search_window_size (TBD)	int	Parameter to specify the sizes of the SWs, provided as integers 1,2, …, 10, which represent multiples of 40 MHz

RDT Config

Name	Type	Description	Range
input_sample_rate	long	The sample rate of the incoming signal.	>= 0
output_sample_rate	long	The desired sample rate of the outgoing signal.	>= 0
fo_validity_interval	double	The duration, in seconds, for which each FODM should be valid, i.e., this should represent the difference between each FODM’s start_ts and stop_ts. Default is 0.01 (10ms).	>= 0
fo_fill_threshold	long	The “needs filling” threshold of elements in the FW circular buffer, below which the DS will start generating and loading more FODMs into the FW. Default is 3000 (30 seconds of 10ms FODMs).	>= 0
fo_low_threshold	long	The “low” threshold of elements in the FW circular buffer, below which the DS will move to a DEGRADED HealthState. Default is 500 (5 seconds of 10ms FODMs).	>= 0
first_input_timestamp_start_offset	double	The time offset, in seconds, which is added to the current timestamp of the IP to determine the minimum allowed start timestamp, rounded up to the next PPS, for FODMs to be provided to the FW driver (which then loads them into the circular buffer). All FODMs generated with start timestamps before this calculated minimum will be discarded.	>= 0
num_lsq_points	long	The number of points to use in the Least Squares (LSQ) linear fitting algorithm for converting HODMs to FODMs. Default is 100.	>= 0
freq_down_shift	double	The frequency downshift that was applied to the input signal in the VCC IP(?).
freq_align_shift	double	A fine frequency shift to additionally apply to the output signal. This covers any residual wideband frequency shift and alignment of channels between frequency slices.
freq_wb_shift	double	The wideband (WB) frequency shift that was applied to the input signal in the Frequency Shifter IP(?).
freq_scfo_shift	double	The frequency shift required due to SCFO sampling. (TODO: Need more detail?)

Returns

Implmented as a LRC. Once the task has completed for a successful command completion, the command will return ResultCode.OK with message ConfigureScan completed OK.

Errors

Bad Request: provided configuration does not match required JSON schema definition or input critieria for a specific band. Returns ResultCode.REJECTED and message: Arg provided does not meet ConfigureScan criteria: {reason}

State Model violation: there was an attempt to call a command that violates the current ObsState. Returns ResultCode.REJECTED and message Attempted to call ConfigureScan command from an incorrect state

Low-level device failure: error configuring a IP block low-level device. Returns ResultCode: REJECTED, message: Configuration of low-level fhs device failed: {device name}

Server Error: unexpected error occured on server. Returns ResultCode: FAILED, message: Failed to an unexpected exception during ConfigureScan

Scan(DevLong)

Parameters

Name	Type	Description
scan_id	long	Identifier of the current scan

UpdateDelayModels(DevString)

Parameters

Name	Type	Description	Range
start_validity_sec	Double
cadence_sec	Double
validity_period_sec	Double
config_id	String
subarray	Integer
receptor_delays	Array of JSON (format Receptor Delays)

Receptor Delays Config

Name	Type	Description	Range
receptor	uint16	Receptor id to update the delay model for	TBD
xypol_coeffs_ns	Vector of Double
ypol_offset_ns	Double

GoToIdle()

Parameters

n/a

EndScan()

Parameters

n/a

AutoSetFilterGains(int)

Parameters

Name	Type	Description	Range
requested_rfi_headroom	int - Optional	Requested RFI Headroom, in decibels (dB), to be accounted for pre-requantization (default: 3 dB)

OffloadTransientBufferCapture(DevLong)

Parameters

Name	Type	Description	Range
epoch_start_time	long	Epoch start time to begin transient buffer capture

GetStoredGainValues(int) - Fast Command

Parameters

Name	Type	Description	Range
band_id	int - Optional	Frequency Band of interest for retrieving gain corrections (uses same definition as Frequency Band used within ConfigureScan)	1-6

Returns

Returns a Float[][][] of digital bandpass corrections for the specified of band_id.

If a band_id is not provided All gains corrections are returned of the format [i → frequency band, j → gain value for channel i, pol % 2]

Abort()

Parameters

n/a

ObsReset()

Parameters

n/a
