MCCS in the STANDBY State

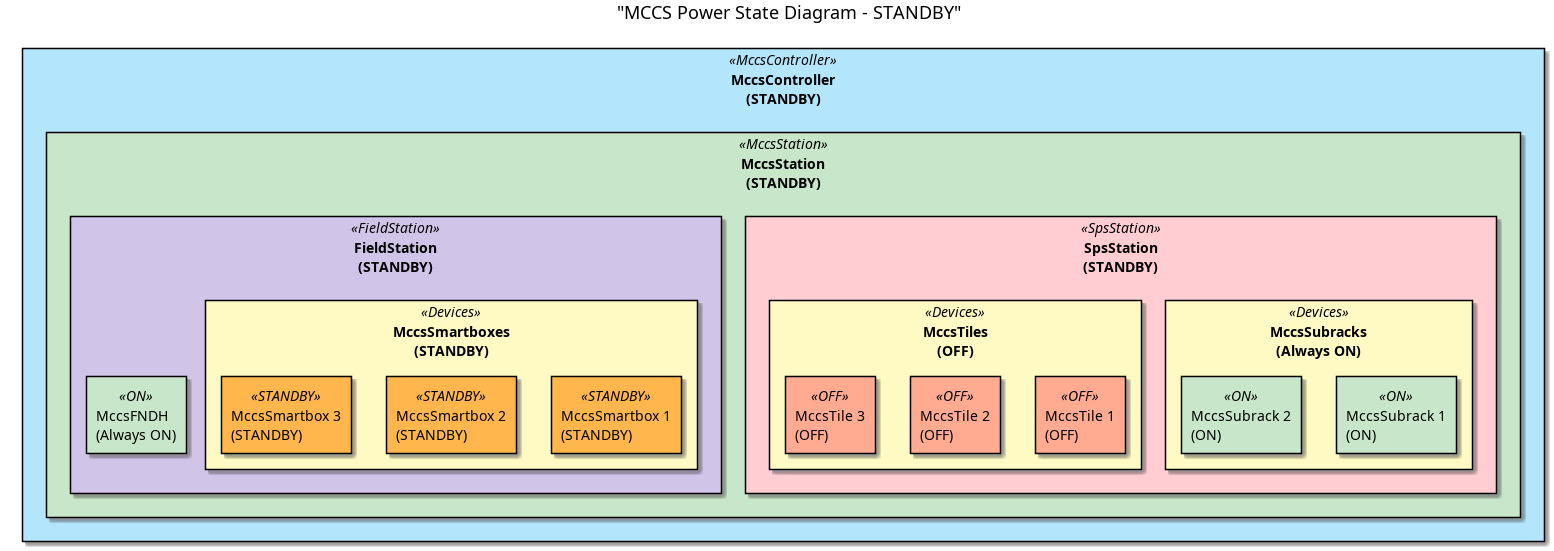

The diagram below indicates an MCCS which is in STANDBY.

Note: This is planned, but not currently implemented.

In the FieldStation:

  • MccsSmartboxes are STANDBY.

  • MccsFNDH is always ON.

  • FieldStation is reporting STANDBY.

In the SpsStation:

  • MccsTiles are OFF.

  • MccsSubracks are ON.

  • SpsStation is reporting STANDBY.

@startuml title "MCCS Power State Diagram - STANDBY" ' Define colors for the different states skinparam rectangle { BackgroundColor<<MccsController>> #B3E5FC BackgroundColor<<MccsStation>> #C8E6C9 BackgroundColor<<SpsStation>> #FFCDD2 BackgroundColor<<FieldStation>> #D1C4E9 BackgroundColor<<Devices>> #FFF9C4 BackgroundColor<<Off>> #FFAB91 BackgroundColor<<ON>> #C8E6C9 BackgroundColor<<STANDBY>> #FFB74D } ' Define the devices and their states rectangle "MccsController\n(STANDBY)" <<MccsController>> { rectangle "MccsStation\n(STANDBY)" <<MccsStation>> { rectangle "SpsStation\n(STANDBY)" <<SpsStation>> { rectangle "MccsSubracks\n(Always ON)" <<Devices>> { rectangle "MccsSubrack 1\n(ON)" <<ON>> { } rectangle "MccsSubrack 2\n(ON)" <<ON>> { } } rectangle "MccsTiles\n(OFF)" <<Devices>> { rectangle "MccsTile 1\n(OFF)" <<OFF>> { } rectangle "MccsTile 2\n(OFF)" <<OFF>> { } rectangle "MccsTile 3\n(OFF)" <<OFF>> { } } } rectangle "FieldStation\n(STANDBY)" <<FieldStation>> { rectangle "MccsFNDH\n(Always ON)" <<ON>> { } rectangle "MccsSmartboxes\n(STANDBY)" <<Devices>> { rectangle "MccsSmartbox 1\n(STANDBY)" <<STANDBY>> { } rectangle "MccsSmartbox 2\n(STANDBY)" <<STANDBY>> { } rectangle "MccsSmartbox 3\n(STANDBY)" <<STANDBY>> { } } } } } @enduml
