MCCS in the ON state

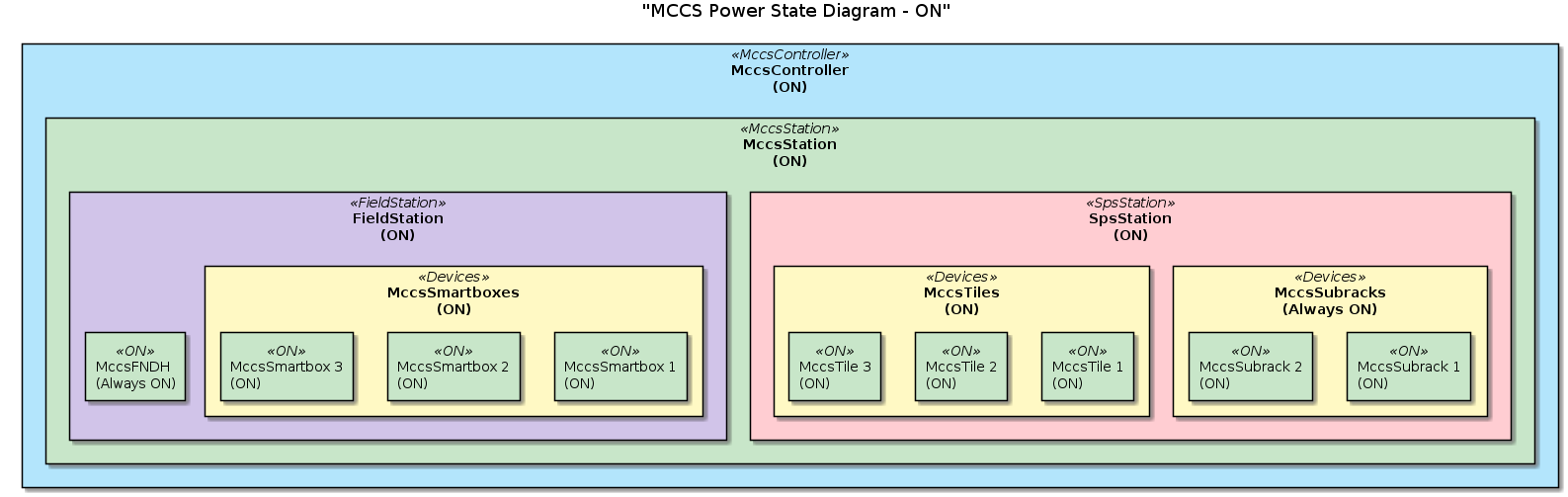

The diagram below indicates an MCCS which is ON.

Every device is ON, therefore MCCS is ON.

$@startuml title "MCCS Power State Diagram - ON" ' Define colors for the different states skinparam rectangle { BackgroundColor<<MccsController>> #B3E5FC BackgroundColor<<MccsStation>> #C8E6C9 BackgroundColor<<SpsStation>> #FFCDD2 BackgroundColor<<FieldStation>> #D1C4E9 BackgroundColor<<Devices>> #FFF9C4 BackgroundColor<<Off>> #FFAB91 BackgroundColor<<ON>> #C8E6C9 } ' Define the devices and their states rectangle "MccsController\n(ON)" <<MccsController>> { rectangle "MccsStation\n(ON)" <<MccsStation>> { rectangle "SpsStation\n(ON)" <<SpsStation>> { rectangle "MccsSubracks\n(Always ON)" <<Devices>> { rectangle "MccsSubrack 1\n(ON)" <<ON>> { } rectangle "MccsSubrack 2\n(ON)" <<ON>> { } } rectangle "MccsTiles\n(ON)" <<Devices>> { rectangle "MccsTile 1\n(ON)" <<ON>> { } rectangle "MccsTile 2\n(ON)" <<ON>> { } rectangle "MccsTile 3\n(ON)" <<ON>> { } } } rectangle "FieldStation\n(ON)" <<FieldStation>> { rectangle "MccsFNDH\n(Always ON)" <<ON>> { } rectangle "MccsSmartboxes\n(ON)" <<Devices>> { rectangle "MccsSmartbox 1\n(ON)" <<ON>> { } rectangle "MccsSmartbox 2\n(ON)" <<ON>> { } rectangle "MccsSmartbox 3\n(ON)" <<ON>> { } } } } } @enduml$
