MCCS Calibration Architecture

The diagram below attempts to describes the calibration architecture.

Calibration architecture

Calibration architecture as currently implemented 0.17.0

  • observational_context: Currently consists of station_id and channel

  • solutions: Currently gain solutions.

  • observational_name: Currently the path of the hdf5 file dumped

  • field_conditions: Currently the outsideTemperature as reported by FieldStation

Application of Solutions

The calibration solutions are applied to each allocated station during the Subarray` Configure command. If no solution is found a unit calibration will be applied as a default.

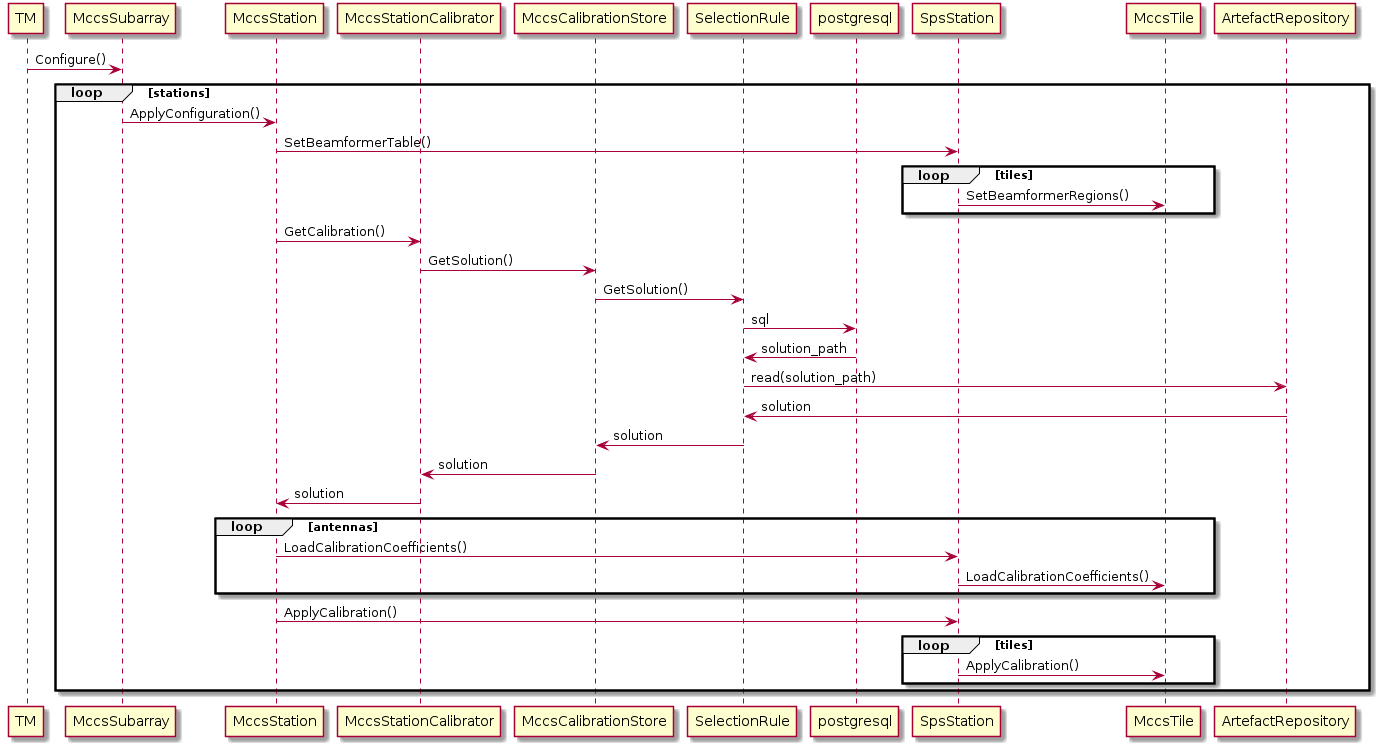

Below is the current sequence diagram:

@startuml participant TM as TM participant MccsSubarray as Subarray participant MccsStation as Station participant MccsStationCalibrator as StationCalibrator participant MccsCalibrationStore as MccsCalibrationStore participant SelectionRule as SelectionRule participant postgresql as postgresql participant SpsStation as SpsStation participant MccsTile as MccsTile participant ArtefactRepository as ArtefactRepository TM -> Subarray: Configure() loop stations Subarray -> Station: ApplyConfiguration() Station -> SpsStation: SetBeamformerTable() loop tiles SpsStation -> MccsTile: SetBeamformerRegions() end Station -> StationCalibrator: GetCalibration() StationCalibrator -> MccsCalibrationStore: GetSolution() MccsCalibrationStore -> SelectionRule: GetSolution() SelectionRule -> postgresql: sql postgresql -> SelectionRule: solution_path SelectionRule -> ArtefactRepository: read(solution_path) SelectionRule <- ArtefactRepository: solution SelectionRule -> MccsCalibrationStore: solution MccsCalibrationStore -> StationCalibrator: solution StationCalibrator -> Station: solution loop antennas Station -> SpsStation: LoadCalibrationCoefficients() SpsStation -> MccsTile: LoadCalibrationCoefficients() end Station -> SpsStation: ApplyCalibration() loop tiles SpsStation -> MccsTile: ApplyCalibration() end end @enduml

Storing of Solutions

The MccsStationCalibrator is responsible for orchestrating the retrieval and storage of calibration solutions.

See sequence diagram for an overview of the internals:

@startuml participant TangoUser as TangoUser participant MccsStationCalibrator as StationCalibrator participant MccsStation as Station participant MccsCalibrationStore as MccsCalibrationStore participant StationCalibrationSolverDevice as solver participant postgresql as postgresql participant SpsStation as SpsStation participant MccsTile as MccsTile participant MccsDaq as MccsDaq participant ArtefactRepository as ArtefactRepository TangoUser -> StationCalibrator: StartCalibrationLoop loop channels StationCalibrator -> Station: AcquireDataForCalibration(channel) Station -> SpsStation: AcquireDataForCalibration(channel) SpsStation -> MccsDaq: Configure() SpsStation -> MccsDaq: Start() SpsStation -> MccsTile: SetLmcDownload() SpsStation -> MccsTile: SendDataSamples() MccsDaq -> ArtefactRepository: dump_hdf5() MccsDaq -> SpsStation: hdf5_data_path SpsStation -> Station: hdf5_data_path Station -> StationCalibrator: hdf5_data_path StationCalibrator -> solver: Solve(\n\thdf5_data_path,\n\tsolution_path) solver -> ArtefactRepository: write(solution_path, gain_solution) StationCalibrator->MccsCalibrationStore: StoreSolution(\n\tsolution_path,\n\tmetadata) MccsCalibrationStore->postgresql: Store(solution_path, metadata) end @enduml
